Model UHH2 Universal Handheld Test Instrument

sku:UHH2

Availability: In stock

฿0.00

ข้อมูลสินค้า

เครื่องอ่านค่าแบบพกพา



  • Universal Handheld Test Instrument รุ่น UHH2

  • มาตรฐาน IP68 ทนการตกกระแทกได้ที่ 1.5 เมตร

  • หน้าจอแบบสัมผัสขนาด 4.3 นิ้ว ตั้งค่าอุปกรณ์ได้เร็วขึ้น

  • ต่อกับโพรบและโมดูลแบบไร้สาย

  • เชื่อมต่อข้อมูลผ่าน Wi-Fi, GSM, CDMA

Model UHH2 Universal Handheld Test Instrument

Rugged Weatherproof Case, Works with Wireless Sensors

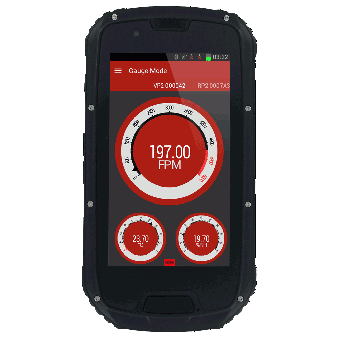

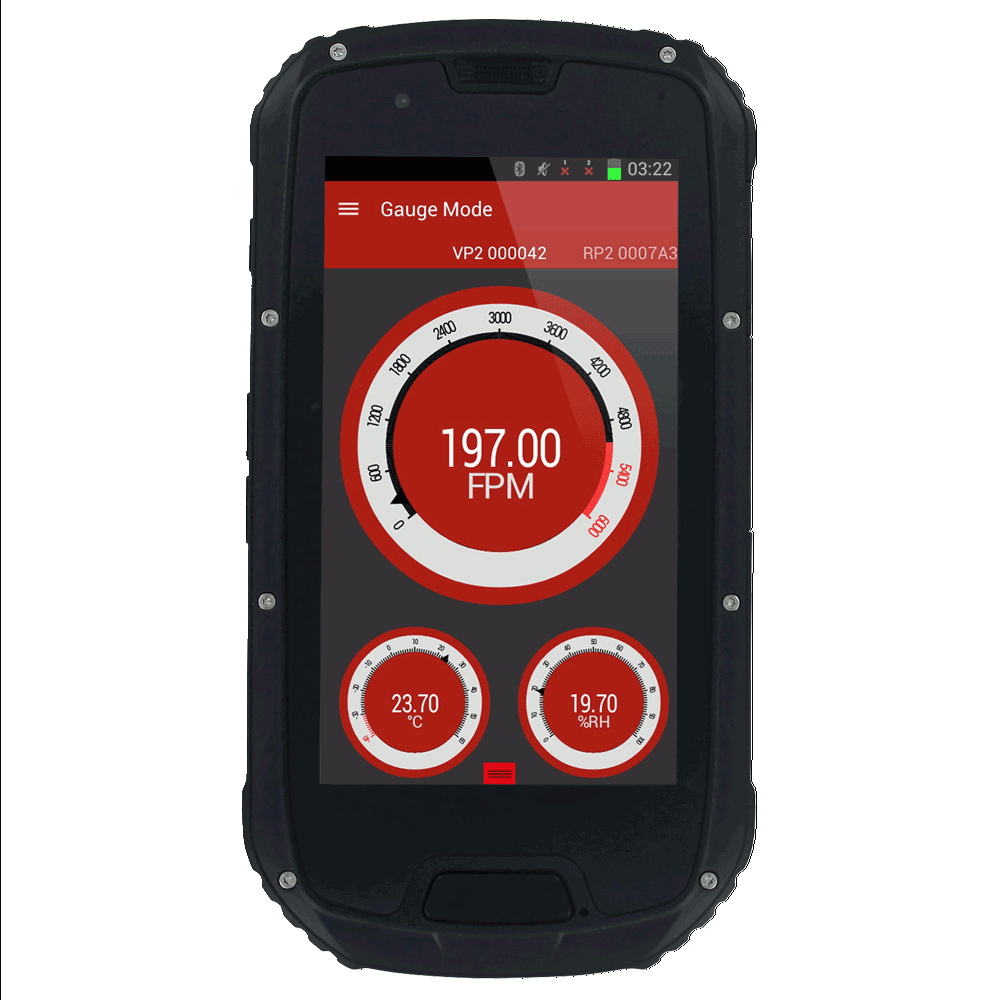

The Model UHH2 Universal Handheld Test Instrument provides the functionality and versatility of the Mobile Meter® Software App on a rugged IP68 Android® based handheld. Wireless anemometer, hygrometer, and pressure probes communicate to the handheld using Bluetooth SIG, Inc. wireless technology and can all be displayed simultaneously. Each UHH2 includes a UHH2 handheld base unit, UHH-BTG wireless mobile gateway, two USB charging cables, charging block, mini-screwdriver, user manual, and headphones.

Key Features

  • Rugged weatherproof housing withstands 1.5 meter drop test
  • Wireless measurement of pressure, air velocity, air flow, temperature, and humidity
  • Share logged data directly from handheld over Wi-Fi, GSM or CDMA networks

Product Applications

  • Building commissioning
  • Building balancing
  • Testing HVAC equipment performance



Specifications

Display: 4.3" QHD Gorrilla glass touch screen, 960x540.
Wireless Distance: 50' (15 m) or greater.
Response Time: 1 s.
Temperature Limits: Operating: -4 to 140°F (-20 to 60°C);
Storage: -40 to 176°F (-40 to 80°C).
Humidity Limits: 5 to 95% RH.
Power Requirements 2000mAh lithium ion battery, installed functional, non-replaceable.
Memory: RAM 1G & ROM 4G.
Operating System: Android 4.2.2.
CPU: MTK6589W Quad Core 1.2 GHz.
Enclosure Rating: IP68.
Weight: 15.9 oz (450 g).
Agency Approval: CE, FCC.

Downloads

รายละเอียดสินค้า Catalog

คู่มือการใช้งาน (Eng) Instruction Manual
