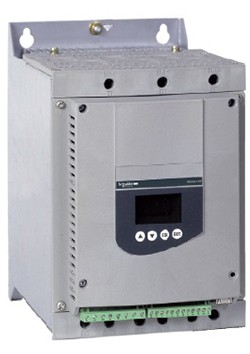

ATS48 Soft starters

sku:ATS48

Availability: In stock

฿0.00

ข้อมูลสินค้า

พัดลมอุตสาหกรรม, ปั้มน้ำ, อุตสาหกรรมแป้งมัน, อุตสาหกรรมทั่วไป, อุตสาหกรรมหนัก

  • ใช้ไฟ 3เฟส 230-400 Vac , 4-355kW

  • 4 ลอจิกอินพุท

  • 2 ลอจิกเอาท์พุท

  • 1 อนาล็อกเอาท์พุท : กระแส (0-20mA)

  • 3 รีเลย์เอาท์พุท : 3NO

  • 1 PTC Probe

  • ระบบ Bypass ภายนอก

  • ระบบการสื่อสารรองรับ: Modbus (RJ45)

  • IP 20

Altistart 48

Soft start-soft stop units for 3-phase asynchronous motors from 4 to 900 kW

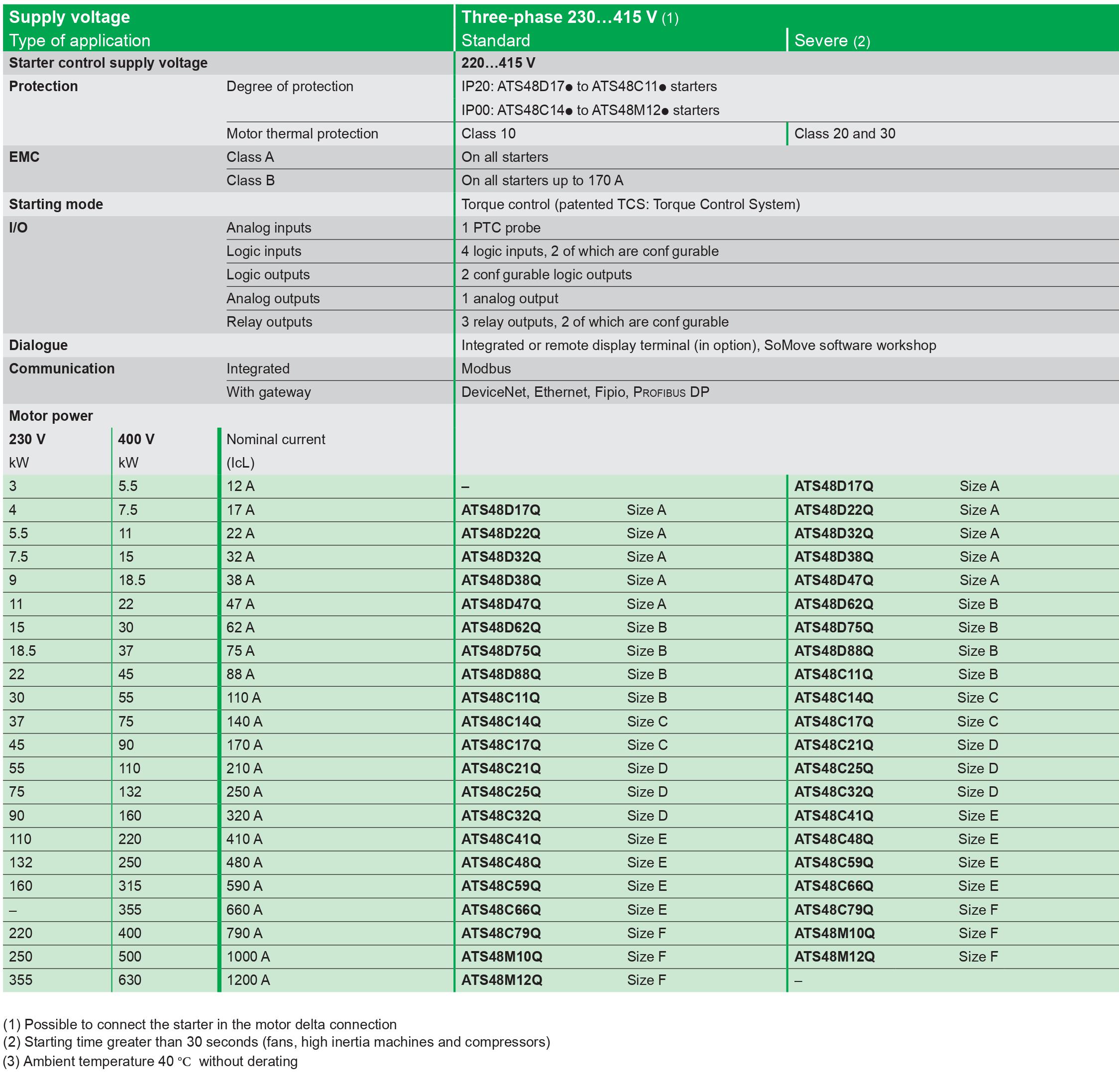

Models & Specifications

Overview

Taming energy
Altistart 48 offers you the benefits of its patented Torque Control System (TCS). Ready for immediate start-up, with simplified wiring and extended communication functions, it can be integrated at the heart of your applications in complete simplicity.

Key Features

230... 415 V / 208... 690 V - 50/60 Hz

  • Starting and stopping of the machine by the Altistart 48 torque control system (TCS patent: Torque Control System)
  • Thermal protection of the motor
  • Protection of the machine: underload and overload with adjustable threshold and times, locked rotor, rotation direction control
  • Factory set for immediate start-up
  • Simplified customisation of settings using built-in display or the PowerSuite software
  • Through connection
  • Control of starter bypass contactor to prevent heat dissipation
  • Dual configuration (2 motors)
  • Numerous configurable inputs/outputs
  • Cascaded starting and deceleration of a number of motors
  • Modbus Integrated, FIPIO, PROFIBUS DP, DeviceNet, Ethernet

Product applications

  • Pumps
  • Fans and high inertia machines
  • Compressors
  • Conveyors
