RFID Read/Write Heads (with amplifier)

RFID Read/Write Heads (with amplifier)

sku:RFID-IQH

PEPPERL+FUCHS

Availability: In stock

฿0.00

ข้อมูลสินค้า

หัวอ่านมีรูปทรงที่หลากหลาย (ทรงกระบอก, ทรงสี่เหลี่ยม) พร้อมทั้งย่านความถี่ 3 ย่านคือ LF, HF, and UHF Frequency

มีรุ่นหัวอ่านที่ต่อระบบสื่อสารได้โดยตรง เช่นต่อกับ PLC, Controller ต่างๆ ผ่าน Protocol RS485 (Point to Point)

Qty:

Add to Compare

https://www.ie.co.th/media/catalog/product/cache/1/image/9df78eab33525d08d6e5fb8d27136e95/r/f/rfid_readwrite_heads_1.png

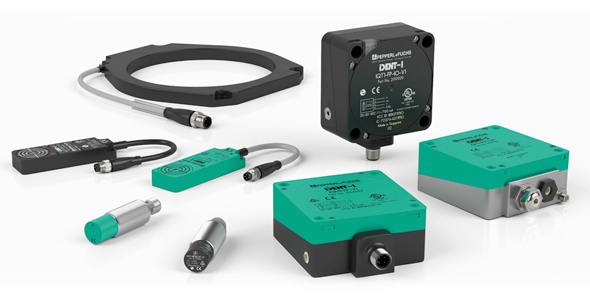

RFID Read/Write Heads

Each application requires a certain RFID read/write head design. Choose from our portfolio of cylindrical and cube-style housings in various sizes for LF, HF, and UHF frequency ranges. Special designed RFID readers for the food or process industries complete the broad product range.

RFID read/write heads are available as near and far field components. They are controlled by control units and read out read-only codes and variable data areas from RFID tags. They can also write to the data areas.

Key Features

- RFID read/write heads from Pepperl+Fuchs are easy to integrate, for instance as a slim cylinder with an external thread in a flat or compact housing.
- For near field RFID (inductive 125 kHz and 13.56 MHz), the read/write distances lie in the one- to two-figure centimeter range
- For far field RFID (868 MHz), the read/write distances reach a maximum of six meters

Model	Description	Datasheet
Read/write head IQH1-18GM-V1	- Operating frequency 13.56 MHz - Conforms to ISO 15693 - Suitable for FRAM transponder - Read/write head with thread M18 x 1 - Connection via V1 (M12 x 1) plug connection - Multihole-LED for function display - Degree of protection IP67 - For connection to IDENTControl control interface	Download PDF
Read/write head IQH1-F61-V1	- Operating frequency 13.56 MHz - Conforms to ISO 15693 - Suitable for FRAM transponder - Particularly flat construction - Connection cable with V1 plug (M12 x 1) - Degree of protection IP67 - Can be mounted on metal - For connection to IDENTControl control interface	Download PDF
Read/write head IQH1-FP-V1	- Operating frequency 13.56 MHz - Conforms to ISO 15693 - Suitable for FRAM transponder - Dual-LED for function display - Connection via V1 (M12 x 1) plug connection - Degree of protection IP67 - For connection to IDENTControl control interface	Download PDF
Read/write head IQH1-F198-M-V1	- Operating frequency 13.56 MHz - Conforms to ISO 15693 - Suitable for FRAM transponder - Particularly flat construction - Connection cable with V1 plug (M12 x 1) - Degree of protection IP67 - Can be mounted on metal - For connection to IDENTControl control interface	Download PDF
Read/write head IQH1-FP7V4A	- Operating frequency 13.56 MHz - Conforms to ISO 15693 - Suitable for FRAM transponder - Dual-LED for function display - Stainless steel housing - Resistant against cleaning material - Connection via terminal compartment - Degree of protection IP67 / IP68 / IP69K - For connection to IDENTControl control interface	Download PDF
Read/write head for hazardous areas IQH1-FP-C1D1	- Explosion-proof housing - Operating frequency 13.56 MHz - Conforms to ISO 15693 - Suitable for FRAM transponder - Connection via screw terminals - Approved for Class I, Groups C, D	Download PDF
