  • LT4000M Series (Modular) | Operator Interface Plus Control | Pro-face

LT4000M Series (Modular) | Operator Interface Plus Control | Pro-face

sku:LT4000M

Pro-face

Availability: In stock

฿0.00

ข้อมูลสินค้า

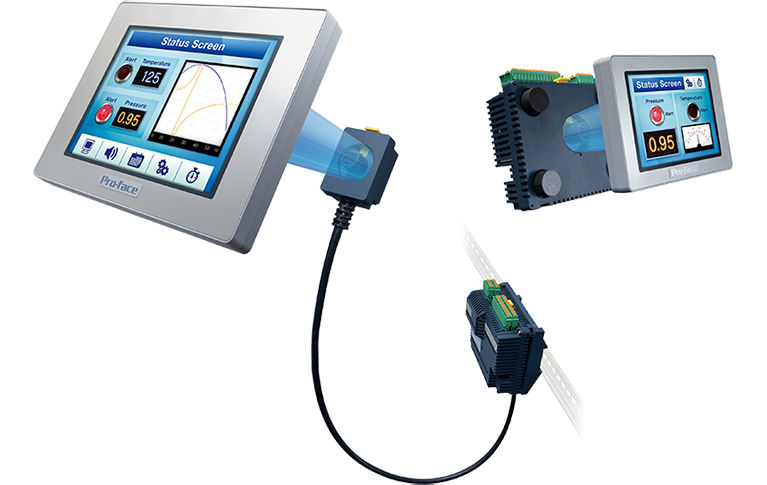

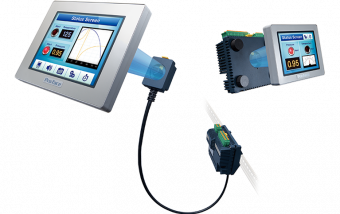

LT4000M Series allows installation in a φ22mm hole and provides both HMI and digital analog control in a single unit. It's a space and cost-saving product.

LT4000M Series (Modular) | Operator Interface Plus Control | Pro-face

Touch Operator Interface Plus Control (HMI+Control)

  LT4000M Series (Modular)

Display Size

Product Name

Display Color

App. Memory

Interface

DIO

AIO

Rated Voltage

Detailed Spec.

- 20 Points Standard Input
(including 2 Points for Fast Input) *1 )

Sink Type

LT-4301M

DIO Model

- 10 Points Standard Output and 2 Points Fast Output *2

-

Source Type

5.7"
(QVGA)

LT-4301M

Analog Model

- 12 Points Standard Input
(including 2 Points for Fast Input) *1 )

- 2 ch analog inputs (13-bit) and 2 ch analog inputs (16-bit) for Thermocouple

Sink Type

65,536 colors

- 6 Points Standard Output and 2 Points Fast Output *2

- 2 ch analog outputs (12-bit)

Source Type

max.

- 20 Points Standard Input
(including 2 Points for Fast Input) *1 )

Sink Type

LT-4201M

DIO Model

Ethernet x 1

Serial x 1

- 10 Points Standard Output and 2 Points Fast Output *2

 -

Source Type

3.5"型
(QVGA)

LT-4201M

Analog Model

16 MB

USB
(Type A) x 1

- 12 Points Standard Input
(including 2 Points for Fast Input) *1 )

- 2 ch analog inputs (13-bit) and 2 ch analog inputs (16-bit) for Thermocouple

Sink Type

USB
(mini-B) x 1

- 6 Points Standard Output and 2 Points Fast Output *2

- 2 ch analog outputs (12-bit)

Source Type

- 20 Points Standard Input
(including 2 Points for Fast Input) *1 )

Sink Type

Rear Module

DIO Model

 -

- 10 Points Standard Output and 2 Points Fast Output *2

-

Source Type

Rear Module *3

Rear Module

- 12 Points Standard Input
(including 2 Points for Fast Input) *1 )

- 2 ch analog inputs (13-bit) and 2 ch analog inputs (16-bit) for Thermocouple

Sink Type

Analog
Model

- 6 Points Standard Output and 2 Points Fast Output *2

- 2 ch analog outputs (12-bit)

Source Type

*1 High-speed Counter (with Synchronize Output), Pulse Catch Input (Uses built-in DIOs points)

*2 Pulse Output, PWM Output

*3 Rear Module Installation Adapter "PFXZXMADSA1" is required for installation to use Rear Module.
