PS6000 Series | Industrial PC (IPC) | Pro-Face

sku:PS6000

Availability: In stock

฿0.00

ข้อมูลสินค้า

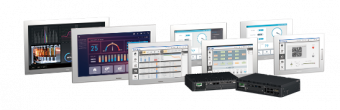

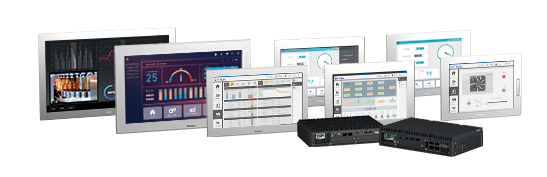

New PS6000 Series from the HMI leader: Robust as a terminal, Open and High-performant as a PC, even more economical. Improve your productivity with the most reliable PC-based architecture experience.

Industrial PC (IPC)

PS6000 Series

Box Module

Type

OS

CPU

DIM

Storage

Interface

Slot-in Option I/F

Expansion slots

Details

Advanced Box *1

Windows10 IoT Enterprise
2019 LTSC (64bit)

Core i5

8 - 32GB

M.2 SSD x1
2.5" HDD/SSD x2

RS-232C x1,
USB Type A: USB2.0 x2, USB3.0 x2,
USB Type C: USB3.0 x1,
Ethernet(RJ45) x2,
DisplayPort x1

2 slots

PCI x1 + PCIe x1
or
PCIe x2
or
PCI x 2

Celeron

4 - 16GB

Standard Box

Core i3

8 - 32GB

M.2 SSD x1
2.5" HDD/SSD x1

1 slots

-

Display Module

Display Size

Resolution

Display Type

Touch Panel Type

Touch Mode Configuration

Front USB

Details

22" Wide

Full HD
(1,920 x 1,080)

19" Wide

15" Wide

FWXGA
(1,366 x 768)

12" Wide

WXGA
(1,280 x 800)

TFT Color LCD

Capacitive Multi-touch
with optimized noise filer

Yes

-Standard mode
-Glove mode,
-Water detection mode

-

10" Wide  *1

15"

XGA
(1,024 x 768)

12"

Resistive multi-touch

Not applicable,
because of a resistive analog touch panel

Not applicable,
because of a resistive analog touch panel

*1  10" Wide is available with only Standard Box, not supported for Advanced Box.

*2  By default, the USB is disabled
