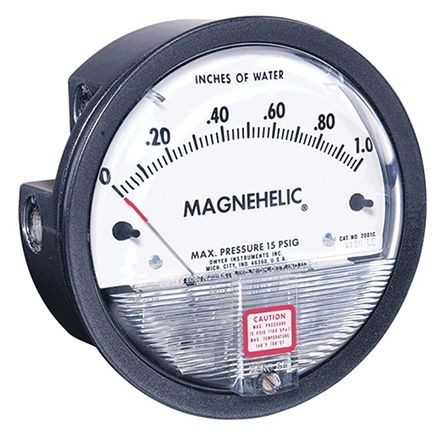

Series 2000 Magnehelic® Differential Pressure Gages

sku:2000

Availability: In stock

฿0.00

ข้อมูลสินค้า

อุปกรณ์วัดค่าความดันหรือสูญญากาศค่าต่ำๆ

  • Differential Pressure Gages Magnehelic รุ่น 2000

  • ใช้วัดสภาพของแผ่นกรองอากาศ ความดันหรือสูญญากาศค่าต่ำๆ ความดันในห้องClean Roomความเร็วลม เป็นต้น

  • วัดค่าความดันได้ต่ำสุดถึง 0-0.25 นิ้วน้ำ (0-60 PA)

  • ความแม่นยำ ±2% (สำหรับรุ่นทั่วไป)

  • ใช้ทดแทนManometerได้ทันที

  • มีหน่วยให้เลือกใช้หลายหน่วย เช่น นิ้วน้ำ มิลลิเมตรน้ำ เซนติเมตรน้ำ PA kPa PSI เป็นต้น

Series 2000 Magnehelic® Gage

อุปกรณ์วัดความดันแตกต่างชนิดเข็มที่มีย่านการวัดให้เลือกมากถึง 81 รุ่น และ 27 ตัวเลือก เกจวัดไม่มีแรงเสียดทานจึงตอบสนองได้อย่างรวดเร็ว วัดได้ทั้งแรงดันบวก แรงดันลบ และแรงดันแตกต่าง ตัวเกจถูกออกแบบมาตามมาตรฐาน IP67 ให้สามารถต้านทานแรงกระแทกของอากาศ ความสั่นสะเทือนและแรงดันเกินพิกัดได้ ความเที่ยงตรง คลาดเคลื่อนไม่เกิน 2%


Key Features

  • Easy to read หน้าปัดมองเห็นง่ายจากระยะไกล

  • Quick response ตอบสนองรวดเร็วต่อการเปลี่ยนแปลงแรงดัน ทำให้ทราบทันทีหากพบความผิดปกติ

  • Durable ส่วนประกอบต่าง ๆ ของเกจมีคุณภาพสูง ทำให้เกจมีความทนทานยาวนาน หมดปัญหาเกจหยุดทำงาน


Product Applications

  • วัดสภาพของแผ่นกรองอากาศ (Filter Monitoring)

  • ใช้งานร่วมกับ Pitot tube เพื่อวัดความเร็วลม (Air Velocity)

  • วัดความดันหรือสูญญากาศค่าต่ำๆ

  • วัดความดันลบในห้องแยกโรค (Isolation room)

  • วัดความดันบวกในห้องปลอดเชื้อ (Clean room) หรือห้องผ่าตัด (Operating room)


Dwyer Serie 2000 Features

Specifications

Service: Air and non-combustible, compatible gases (natural gas option available). Note: May be used with hydrogen. Order a Buna-N diaphragm. Pressures must be less than 35 psi.
Wetted Materials: Consult factory.
Housing: Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.
Accuracy: ±2% (-HA model ±1) of FS (±3% (-HA ±1.5%) on -0, -100PA, -125PA, -10MM and ±4% (-HA ±2%) on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
Pressure Limits: -20 in Hg. to 15 psig. (-0.677 bar to 1.034 bar); MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).
IP67
Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. See Overpressure Protection note on Catalog page.
Temperature Limits: 20 to 140°F (-6.67 to 60°C). -20°F (-28°C) with low temperature option.
Size: 4" (101.6 mm) diameter dial face.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
Weight: 1 lb 2 oz (510 g); MP & HP 2 lb 2 oz (963 g).
Standard Accessories: Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe thread to rubber tubing adapters and three flush mounting adapterswith screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.)
Agency Approval: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). Note: -SP models not RoHS approved.
