ST6000 Series | Touch Operator Interface หน้าจอสัมผัส HMI | Pro-Face ...

ST6000 Series | Touch Operator Interface หน้าจอสัมผัส HMI | Pro-Face

sku:ST6000

Pro-face

Availability: In stock

฿0.00

ข้อมูลสินค้า

The ST6000 series brings a new level of visualization to the Basic HMI market, which no other basic product has accomplished. We have achieved a superior quality display that improves operability and is unmatched by any other basic product. Optimize operations and machine information.

Qty:

Add to Compare

https://www.ie.co.th/media/catalog/product/cache/1/image/9df78eab33525d08d6e5fb8d27136e95/s/t/st6000_lineup_blue_hame_bis.png

Industrial Flat Panel Monitors

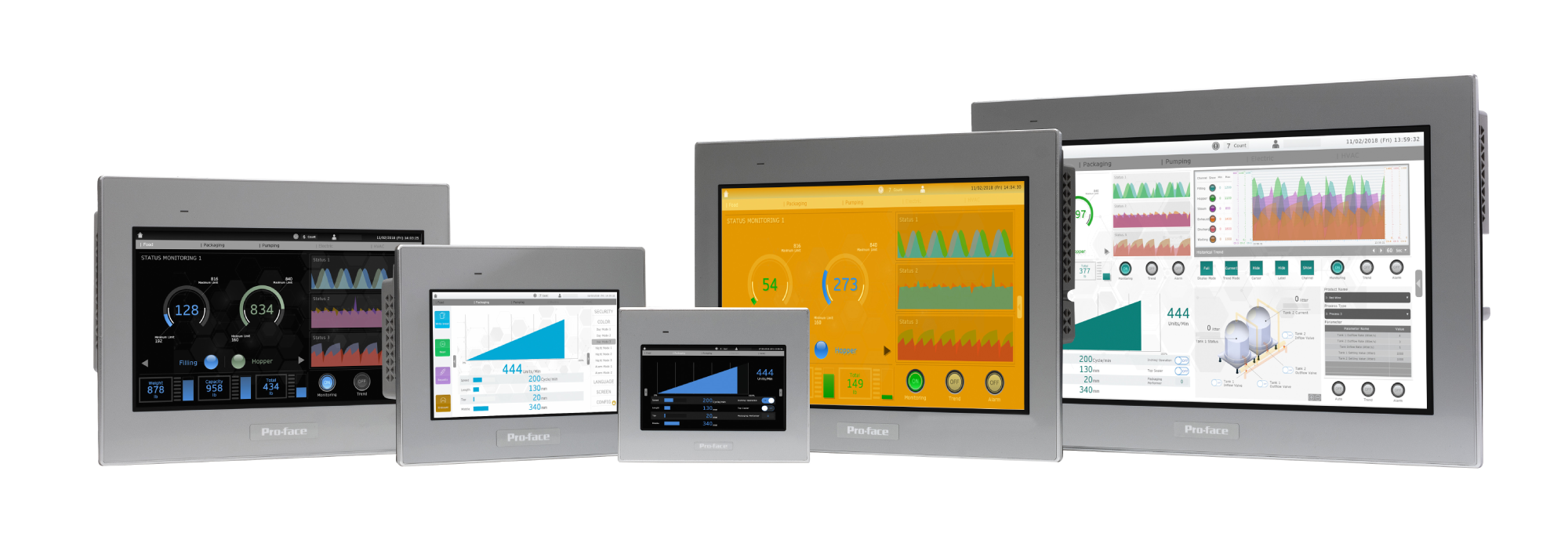

ST6000 Series

ST-6200WA

ST-6400WA

ST-6500WA

ST-6600WA

ST-6700WA

Model No

PFXST6200WADE

PFXST6400WADE

PFXST6500WADE

PFXST6600WADE

PFXST6700WADE

Display

4.3” Wide (480 x 272)

7.0” Wide (800 x 480)

10.1” Wide (1,024 x 600)

12.1” Wide (1,280 x 800)

15.6” Wide (1,366 x 768)

16M colors White LED 16 level brightness control

Touch Panel

Type : resistive film (analog). Service life : 1,000,000 times or more

Interface

COM : RS-232C / 422 / 485*
Ethernet : IEEE802.3i /
IEEE802.3u, 10BASE-T /
100Base-TX x 1 USB : TYPE A X 1,
micro-B x 1

COM1 : RS-232C,COM2 : RS-422 / 485
Ethernet : IEEE802.3i / IEEE802.3u, 10Base-T / 100BASE-TX x 2 USB : Type A x 1, Micro-B x 1

Input Voltage

19.2 to 28.8 Vdc

Certifications

IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure), CE, UL and cUL, RCM, KC, EAC, RoHS, WEEE

Memory

Application memory : Media : FLASH EPROM / Screen area: 64MB / User font area 8 MB / Logic program area: 132KB
Backup memory : Screen Area: SRAM 320KB, Variable Area: SRAM 64KB
Battery: Replaceable battery / Primary battery for clock data backup
