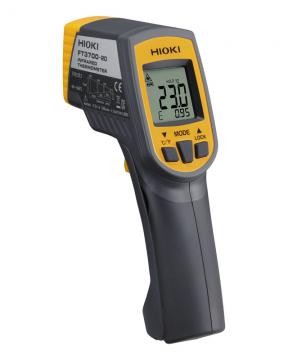

FT3701-20 Infrared Thermometer | เครื่องวัดอุณหภูมิอินฟาเรด | HIOKI

sku:FT3701-20

HIOKI

Availability: In stock

฿0.00

ข้อมูลสินค้า

อินฟาเรด เทอร์โมมิเตอร์

  • วัดอุณหภูมิโดยไม่ต้องสัมผัสกับชิ้นงาน ที่อุณหภูมิ-60ถึง760องศาเซลเซียส

  • มีLaser Marker 2จุด ระบุตำแหน่งในการวัดอุณหภูมิได้อย่างชัดเจน

  • มีBacklight displayสะดวกเมื่อใช้งานในพื้นที่มืด

  • สามารถปรับค่าการสะท้อนรังสีอินฟาเรดตามชนิดของวัสดุได้(Emissivity)

  • เปลี่ยนอุณหภูมิเป็นองศาฟาเรนไฮต์ได้

FT3701-20 Infrared Thermometer | เครื่องวัดอุณหภูมิอินฟาเรด | HIOKI

INFRARED THERMOMETER FT3701-20

Non-contact Infrared Thermometer Sharply Focus on Measurement Spots with Two-Beam Laser Marker, Ideal for HVAC Applications

The FT3701 are non-contact thermometers using infrared rays, accurately pinpointing the spot with a two-beam laser marker. The infrared temperature guns identify the surface temperature of an object by measuring the energy level of the infrared rays emitted from the object without physically coming in contact with it.

Key Features

• Pistol design with easy-to-see display

• A full menu of basic measuring functions

• Easily test in difficult locations, moving objects or where there is danger of electric shock


Choose according to your measurement location Two Models

Choose according to your measurement location Two Models

FT3700-20: Long-focus, For measuring temperature over a wide area
FT3701-20: Long-focus, Precise-field, For measuring temperature at a single point

Identify the measurement location reliably Two-point laser marker
Non-contact infrared thermometer featuring simple, one-touch measurement

Non-contact infrared thermometer featuring simple, one-touch measurement

Easy operation: just pull the measurement trigger
Release it to hold the measured value
It’s easy to make readings in hazardous or unreachable locations

Since the instrument measures radiation temperature, it’s easy to make readings in hazardous or unreachable locations

Locations that cannot be touched due to moving parts
Locations that pose the risk of electric shock
Unreachable locations

It’s optimal for measuring temperature anywhere

Specifications

Measurement temperature range -60.0 to 550.0 ˚C (-76 to 1022 ˚F), 0.1 ˚C resolution
Accuracy -35.0 to -0.1 ˚C (-31.0 to 31.9 ˚F) : ±10 %rdg. ±2 ˚C
0.0 to 100.0 ˚C (-32.0 to 212.0 ˚F) : ±2 ˚C
100.1 to 500.0 ˚C (212.1 to 932.0 ˚F) : ±2% rdg.
Note) -60.0 to -35.1 ˚C (-76.0 to -31.1 ˚F), and over 500.1 ˚C (932.0 ˚F) : Accuracy not specified
Response time 1 sec (90%)
Measurement wavelength 8 to 14 µm
Thermal emissivity compensation ε=0.10 to 1.00 (0.01 step)
Measurement field diameter ε=0.10 to 1.00 (0.01 step)
Sighting Two-beam laser marker Max 1 mW (class 2), Red
Functions Continuous measurement mode, MAX/ MIN/ DIF (MAX - MIN)/ AVG measurement, Alarm, Backlight, Auto power-off
Power supply LR03 (AAA) alkaline battery ×2, 150 mVA, Continuous use of 140 hours (With laser marker, backlight and buzzer are OFF)
Dimensions and mass 48 mm (1.89 in) W × 172 mm (6.77 in) H × 119 mm (4.69 in) D, 256 g (9.0 oz), (including batteries)
Accessories Instruction manual ×1, LR03 alkaline battery ×2, Carrying case ×1

Downloads

Catalog: INFRARED THERMOMETER FT3700, FT3701  Download PDF
