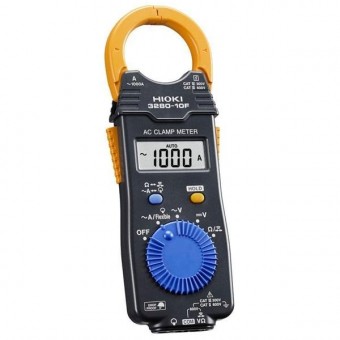

3280-10F AC Clamp Meter | แคลมป์มิเตอร์ | HIOKI

sku:3280-10F

Availability: In stock

฿0.00

ข้อมูลสินค้า

AC แคลมป์มิเตอร์ (AC Clamp Meter)



  • แคลมป์มิเตอร์สำหรับวัดกระแสไฟ AC คำนวณค่าแบบเฉลี่ย (Mean)

  • วัดกระแสไฟ AC ได้สูงสุด 1000 แอมป์ สามารถเชื่อมต่อเซ็นเซอร์ CT6280 flexible sensor ที่สามารถวัดกระแสไฟ AC ได้สูงสุด 4200 แอมป์ (อุปกรณ์ซื้อเพิ่มเติม) วัดแรงดัน AC/DC ได้สูงสุด 600 โวลต์

  • วัดความต้านทานได้สูงสุด 42 เมกะโอห์ม , มีฟังก์ชั่นวัดความต่อเนื่อง (สายไฟขาดใน)

  • ปากแคลมป์เปิดได้ 2 ด้าน สะดวกต่อการใช้งานในพื้นที่แคบ

  • ป้องกันความเสียหายจากการตกกระแทกที่ระยะ 1 เมตร


AC Clamp Meter | 3280-10F

Rugged & Compact, Essential Equipment for Professional Electricians: Measure Current and Voltage with a Single Instrument

       แคลมป์มิเตอร์ถูกออกแบบมาให้มีขนาดเล็ก บางและกะทัดรัด มาพร้อมฟังชั่นการวัด: AC Current | AC/DC Voltage | Resistance | Continuity ในเครื่องเดียว ระยะในการแคลมป์กว้างสุด ที่ ø33 mm. ผ่านการทดสอบการ Drop proof ทนได้ถึง 1 เมตร ออกแบบและพัฒนาให้ใช้งานได้กว้างขวางในหลายสภาพอากาศ ที่อุณหภูมิตั้งแต่ -25 ถึง 65˚C

CE DROPPROOF
สั่งซื้อออนไลน์ผ่าน Lazada
shop now
.
.

Key Features

  • Measure the fundamental waveform component using the average rectified method
  • Expanded -25 °C to 65 °C operating temperature range
  • Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
  • Drop proof design withstands drop from a height of 1 meter
เป็นแคลมป์มิเตอร์ขนาดพกพาที่ใช้ร่วมกับ AC Flexible Current Sensor (แยกจำหน่าย) จึงทำให้สามารถใช้วัดสายไฟที่มีขนาดใหญ่หรือในบริเวณที่คับแคบที่แคลมป์มิเตอร์ปกติเข้าถึงได้ยากได้อย่างง่ายดาย
รองรับการใช้งานที่คลอบคลุม สามารถใช้งานได้ในทุกๆ รูปแบบ ไม่ว่าจะเป็น Current วัดกระแส, Voltage วัดแรงดัน, Continuity Check เช็คความต่อเนื่อง, Resistance วัดค่าความต้านทาน
นอกจากขนาดที่เล็กกะทัดรัดแล้ว ยังมาพร้อมกับความแข็งแรง, ทนทาน ที่สามารถทนทานต่อการตกกระแทกได้ถึง 1 เมตร และยังสามารถนำไปใช้งานได้ในอุณหภูมิตั้งแต่ -25 ถึง 65 องศาเซลเซียส เลยทีเดียว



Specifications

AC Current range:

41.99 to 1000 A, 3 ranges (50 to 60 Hz, Average rectified),

Basic accuracy: ±1.5 % rdg. ±5 dgt.

DC voltage range:

419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt.

AC voltage range:

4.199 V to 600 V, 4 ranges
(45 to 500 Hz, Average rectified),
Basic accuracy: ±1.8 % rdg. ±7 dgt.

Resistance range:

419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.

Other functions:

Continuity: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter

Display:

LCD, max. 4199 dgt., Display refresh rate: 400 ms.

Environmental protection:

IP40 dustproof and waterproof

Power supply:

For resistance measurement range, R6P (AA) ×2 batteries

Dimensions and mass:

95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz)

Accessories:

Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1
