Series ULS Ultrasonic Level Sensor

Series ULS Ultrasonic Level Sensor

sku:ULS

Dwyer

Availability: In stock

฿0.00

ข้อมูลสินค้า

อุปกรณ์วัดอัตราการไหล

ใช้กับของเหลว

ย่านการใช้งาน 5 m, 15 m (กำหนดตอนสั่งซื้อ)

ความแม่นยำ ±0.25%

อุณหภูมิใช้งานสูงสุด 70 องศาเซลเซียส

ความดันใช้งานสูงสุด 2 bar (30 psi)

ขนาดขั้วต่อเข้ากับท่อ 2" NPT, 1/2" BSP (กำหนดตอนสั่งซื้อ)

Qty:

Add to Compare

https://www.ie.co.th/media/catalog/product/cache/1/image/9df78eab33525d08d6e5fb8d27136e95/u/l/ulss_600x600_1.gif
https://www.ie.co.th/media/catalog/product/cache/1/image/9df78eab33525d08d6e5fb8d27136e95/u/s/usb_adapter_600x600_1.gif

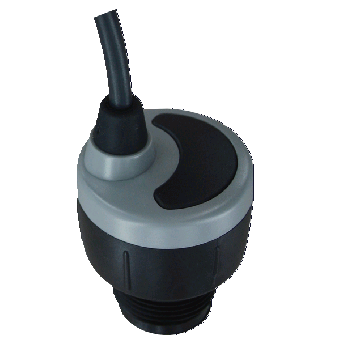

Series ULS
Small Tank Ultrasonic Transmitter, Switch and Controller

Non-Contact Transmitter, SPST Programmable Relays

Series ULS Ultrasonic Level Sensor provides non-contact, continuous ultrasonic level measurement of fluids for short range applications. Ultrasonic technology paired with automatic temperature compensation provides accurate and reliable measurements in almost all conditions. The Model ULSS has failsafe logic that is easily configured to custom applications via free software removing the need for target calibration. Using the free software, the Model ULSS can be programmed to transmit an output signal as well as set the four relays for control applications. This rugged design comes with a NEMA 6P submersible enclosure rating to ensure a long lasting unit.

Key Features

Via free software, units can be programmed to transmit an output signal and operate four relays for control applications
Provides reliable, accurate, and non-contact level measurement of compatible liquids
Non-contact technology offers no moving parts to wear, jam, corrode, or get coated like contact technologies
Mapping software makes effective measuring surface only a 3" (76.2 mm) diameter column with no concerns of ladders, pipes, or other tank intrusions in the remaining sound cone
Ultrasonic technology paired with automatic temperature compensation provides accurate and reliable measurements in almost all conditions
Fail-safe logic is easily configured to custom applications via free software removing the need for target calibration
Full NEMA 6P submersible enclosure rating to ensure excellent product durability
