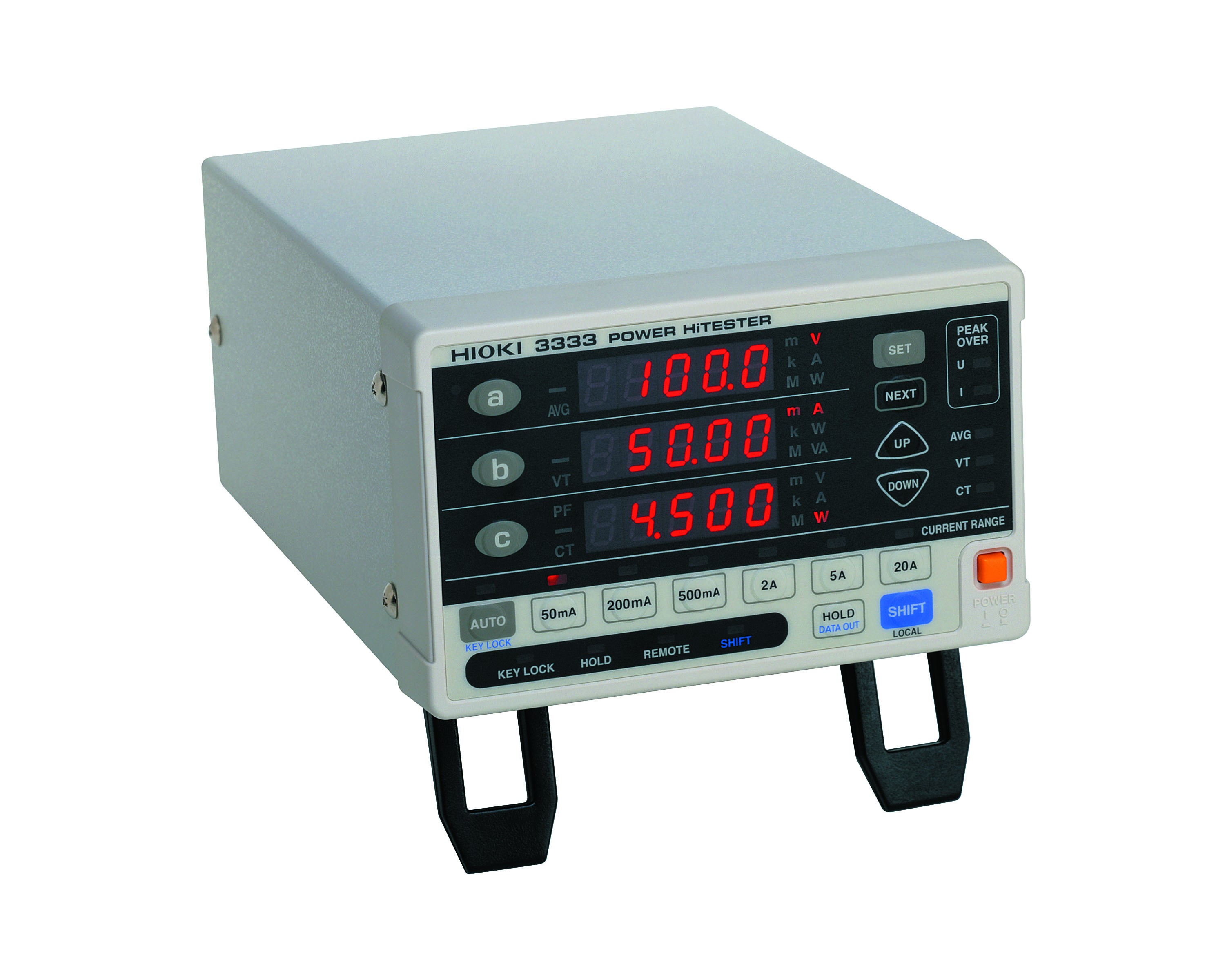

Single Phase Power Meter for Production and Inspection Lines
Hioki benchtop power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The 3333 is single-phase, direct input AC power meters designed to precisely measure the power consumption of electrical household appliances on production lines.
• Ideal for replacing portable instruments, ±0.1% basic accuracy
• Extended period of guaranteed accuracy of 3 years
• 50mA to 20A AC current range (300 V Max., Accuracy guaranteed up to 30 A)
• Print out with the 9442 and RS-232C interface
3333 | |
3333-01 | Buit-in GP-IB |
Measurement lines |
Single-phase 2-wires |
Measurement items |
Voltage, Current, Active power, Apparent power, Power factor |
Measurement range |
[Voltage] 200 V AC (300 V Max.) [Current] 50/ 200/ 500 mA, 2/ 5/ 20 A AC (30 A Max.) [Power] 10.000 W to 4.000 kW (combination of voltage and current ranges) |
Input resistance (50/60 Hz) | [Voltage] 2.4 MΩ, [Current] 7 mΩ or less (direct input) |
Basic accuracy |
[Guaranteed for 1 year, Voltage, Current, Active power] ±0.1 % rdg. ±0.1 % f.s. (45 Hz to 66 Hz, input current 20 A or less) [Guaranteed for 3 years, Voltage, Current, Active power] ±0.1 % rdg. ±0.2 % f.s. (45 Hz to 66 Hz, input current 20 A or less) |
Display refresh rate |
5 times/s |
Frequency characteristics |
45 Hz to 5 kHz |
D/A output |
3 channels outputs simultaneously for voltage, current, active power +2 V DC f.s. |
Functions |
Scaling (VT, CT ratio settings), Average function |

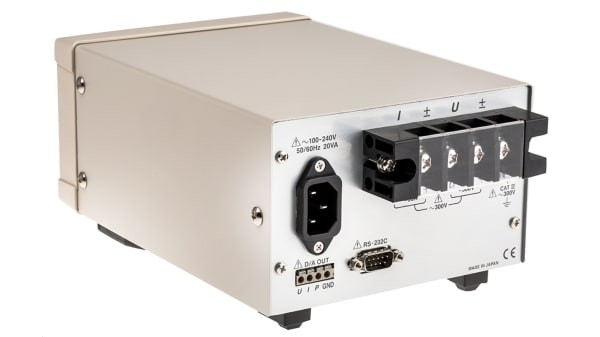

Interfaces |
RS-232C standard, GP-IB (Model 3333-01 only) |
Power supply |
100 to 240 V AC, 50/60 Hz, 20 VA max. |
Dimensions and mass |
160 mm (6.30 in) W × 100 mm (3.94 in) H × 227 mm (8.94 in) D, 1.9 kg (67.0 oz) |
Accessories |
Instruction manual ×1, Power cord ×1 |
Catalog: POWER METER Series Download PDF
