3665-20 LAN Cable Tester | เครื่องทดสอบสายแลน | HIOKI

sku:3665-20

Availability: In stock

฿0.00

ข้อมูลสินค้า

อุปกรณ์ตรวจเช็คสายเคเบิล (LAN Cable Tester)

  • เช็ค Pass/Fail ของสาย รวมทั้ง สายขาด ช็อต สลับหรือต่อผิดได้

  • มีฟังก์ชันวัดระยะของสายสูงสุดถึง 300 เมตร

  • มีหน้าจอแสดงผลและมีสัญญาณเสียง Beep

  • มีฟังก์ชันแสดงการเข้าสาย Wire Map

  • สามารถตรวจสอบได้ทั้งสาย 10/100BASE, 1000BASE-T และ 1000BASE-TX

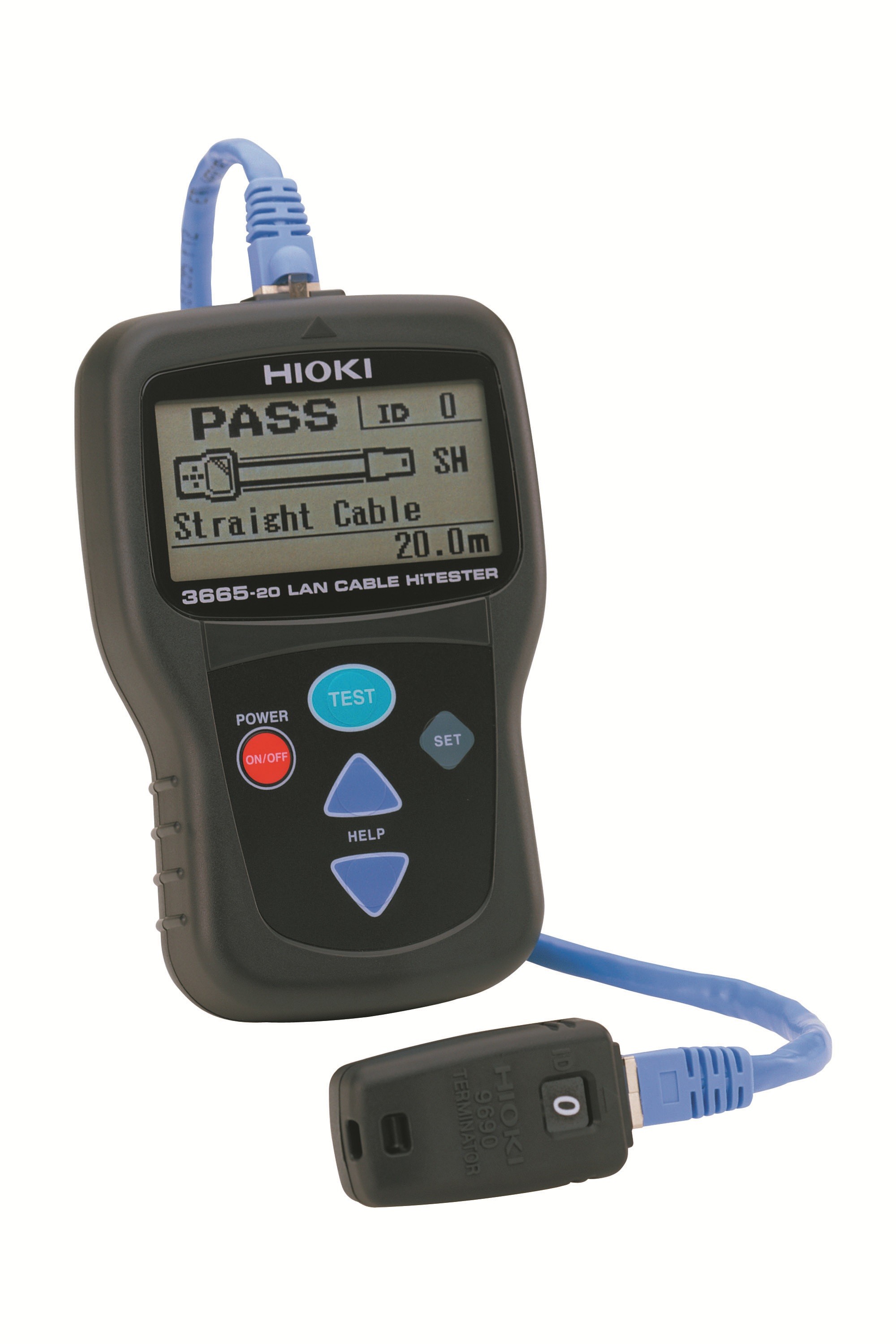

LAN Cable Tester | 3665-20

Easily Identify the Location of LAN Cable Wire Breaks

       เครื่องทดสอบสาย LAN ขนาดกะทัดรัด ใช้งานสะดวกง่ายต่อการทดสอบเส้นทางเดินสายเคเบิล และระบุคู่สายเหมาะสำหรับการตรวจสอบการเชื่อมต่อหลังจากติดตั้งสาบเคเบิลในเครือข่ายหรือองค์กรต่างๆ

 CE




Key Features

• Wire map check : Detect split pairs with wiring check

• Cable length : Get NVP-Enhanced measurement accuracy

• Direction check : Identify up to 21 cable destinations

Specifications

Measurable cable

Twisted-pair cable, characteristic impedance: 100 Ω, shielded and unshielded, CAT 3, 4, 5, 5e and 6

Compatible connectors

RJ-45 plugs

Wire map test

Detectable errors: open, short, reversed, transposed, split pairs and other incorrect wiring
(Wiring condition and shielding can be confirmed using the Terminator 9690)

Cable length measurement

Measurable lengths: 2 m to 300 m (6.6 ft to 984 ft)
Measurement accuracy: ± 4 % rdg. ± 1 m (3.3 ft)
Display resolution: 0.1 m (0.3 ft)

Direction measurement

Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04

Power supply

LR6 (AA) alkaline battery ×2, 1.4 VA max., Continuous use : 50 hr (at measurement interval of 1 minute)

Dimensions and mass

85 mm (3.35 in)W × 130 mm (5.12 in)H × 33 mm (1.30 in)D, 160 g (5.6 oz) (without batteries)

Accessories

Terminator 9690 ×1, Carrying case ×1, LR6 (AA) alkaline battery ×2, Instruction manual ×1

Downloads

Catalog: LAN CABLE HiTESTER 3665 [Download PDF]

Instruction Manual [Download PDF]
