The Series RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter is the most versatile room transmitter on the market. The stylish housing is well vented to provide air flow across the sensor to improve measurement accuracy. The humidity and the dew point are measured using a capacitive polymer sensor that completely recovers from 100% saturation. The humidity and dew point can have either a current or voltage output, while the optional temperature output can be a current, voltage, RTD or thermistor. For models with current or voltage for the temperature output, the temperature range is field selectable.

Product Applications

• Air economizers
• Room comfort monitoring
• Greenhouse monitoring

Features

• Field selectable relative humidity or dew point output
• Universal analog outputs
• Integral or service tool LCD display options

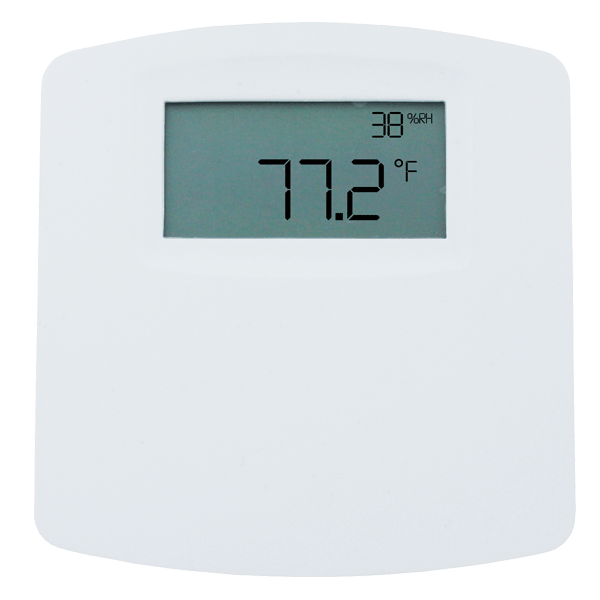

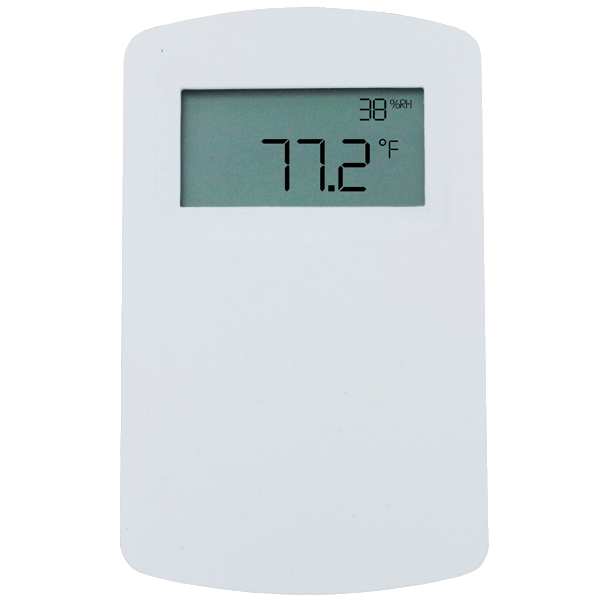

• Two housing designs to match North American and European aesthetics

Specifications

• Relative Humidity Range : 0 to 100% RH.
• Temperature Range : -40 to 140°F (-40 to 60°C) for thermistor and RTD sensors. -20 to 140°F (-28.9 to 60°C) for solid state band gap temperature sensors.
• Dew Point Temperature Range : -20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C) field-selectable ranges.
• Accuracy RH : ±2%, ±3% and ±5%
• Accuracy Temperature : Thermistor temperature sensor: ±0.36°F @ 77°F (±0.2°C @ 25°C); RTD temperature sensor: DIN Class B; ±0.54°F @ 32°F (±0.3°C @ 0°C); Solid state band gap temperature sensor: ±0.9°F @ 77°F (±0.5°C @ 25°C).
• Power Requirements: 4-20 mA loop powered outputs : 10-35 VDC; 0-5/10V
• outputs : 15-35 VDC or 15-29 VAC.
