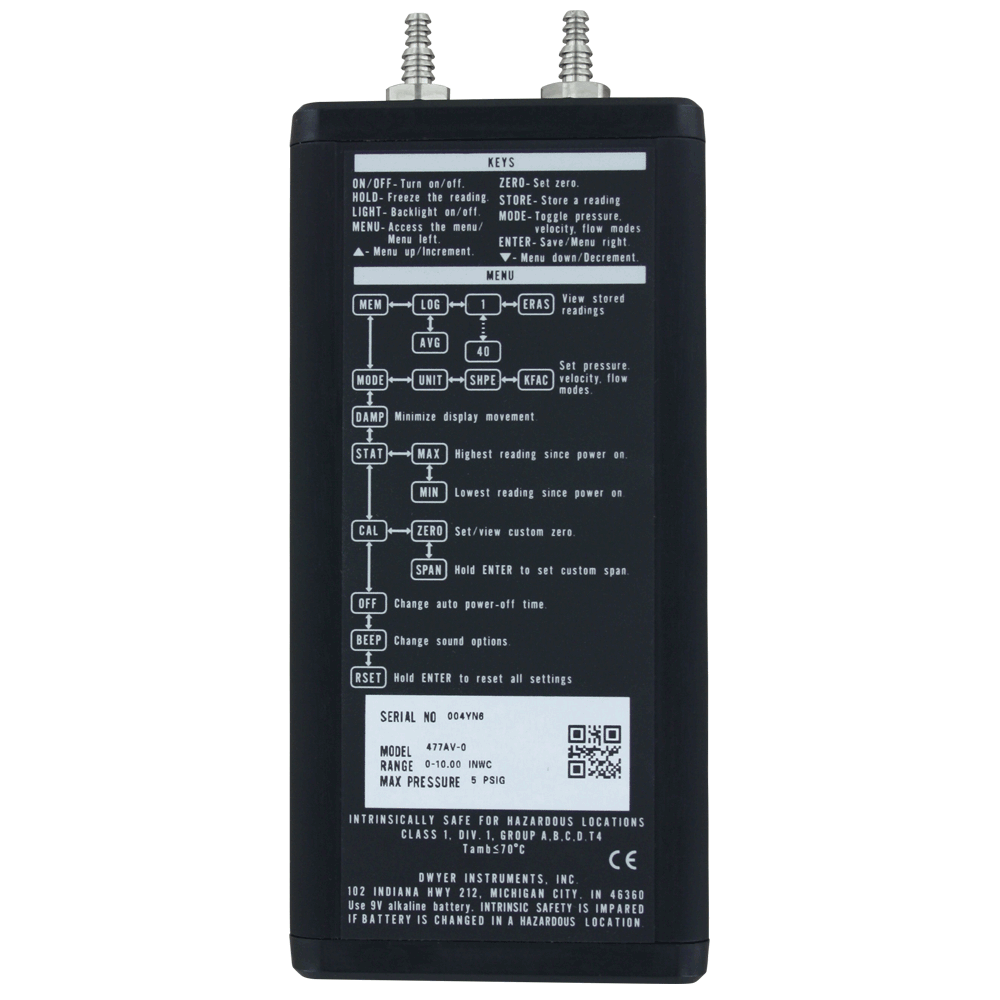

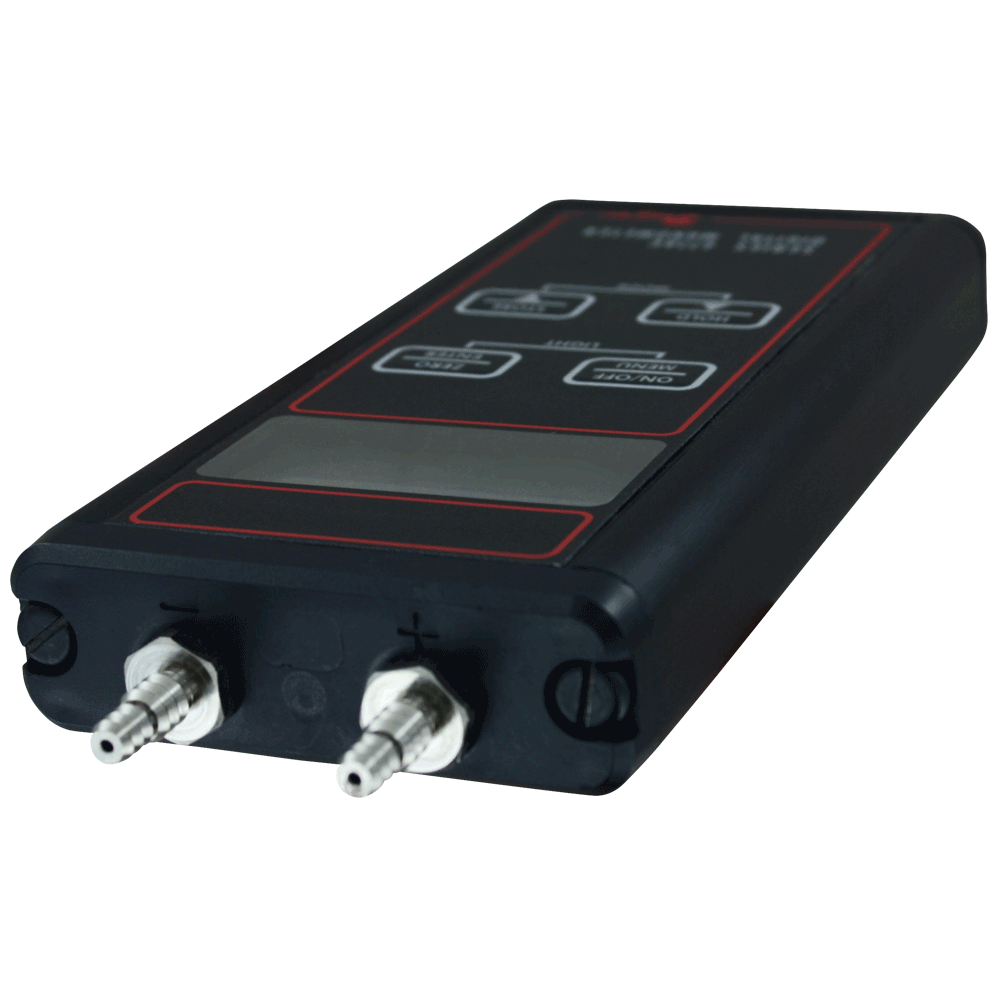

The Series 477AV Handheld Digital Manometer is now available with pressure, flow, and velocity measurements along with a number of other convenient features. The built-in air velocity and flow calculations provide accuracy and conserve time and error associated with manual calculations. Also featured on this unit are adjustable zero and span values for calibrating in the field, as well as a damping feature to compensate for the fluctuating of readings.

Product Applications

• Air flow monitoring, when used with a Dwyer® pitot tube
• Duct static pressure
• Commercial air balancing
• Building-zone pressure

Features

• Calculates and displays air velocity and volumetric air flow
• Rugged aluminum case protects instrument from damage during transport/use
• 9 selectable English and metric engineering units
• Large, easy to read display with backlight for use in dark areas
• Stores up to 40 readings with minimum, maximum and average statistics
• Convenient all-in-one air velocity kit option available

Specifications

• Measures Pressure, Flow and Velocity; ±0.5% Accuracy
• Service : Air and compatible gases
• Accuracy : ±0.5%
• Pressure Range, Velocity Range, Available Pressure Units
• Power Requirements : 9 V alkaline battery, installed non-functional, user replaceable.


Models & Ordering
