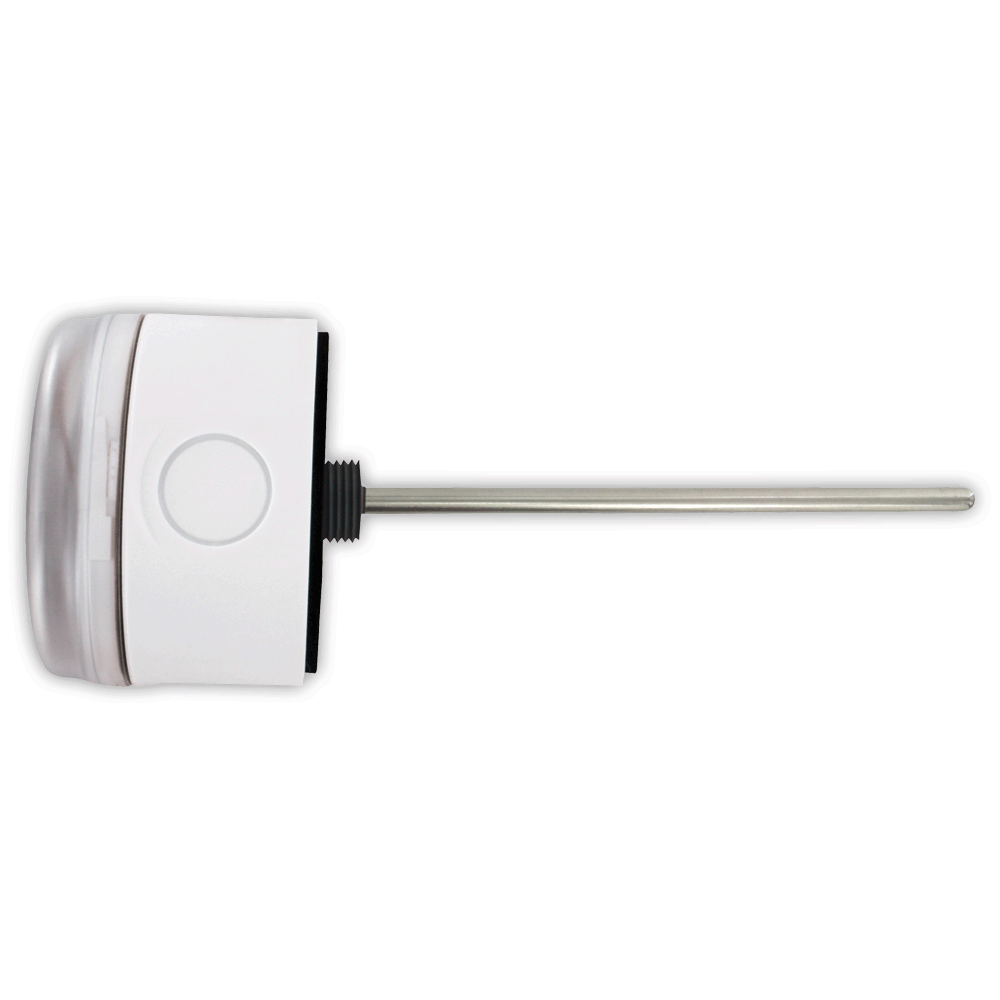

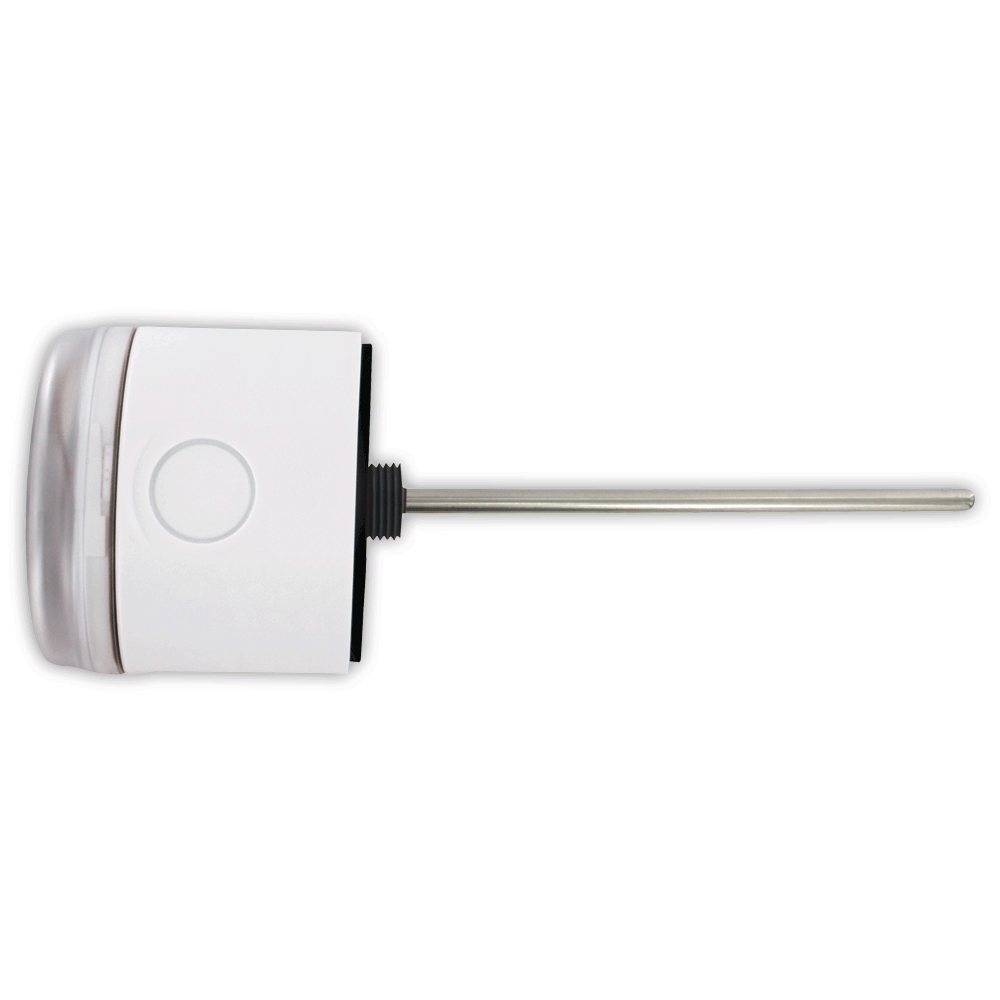

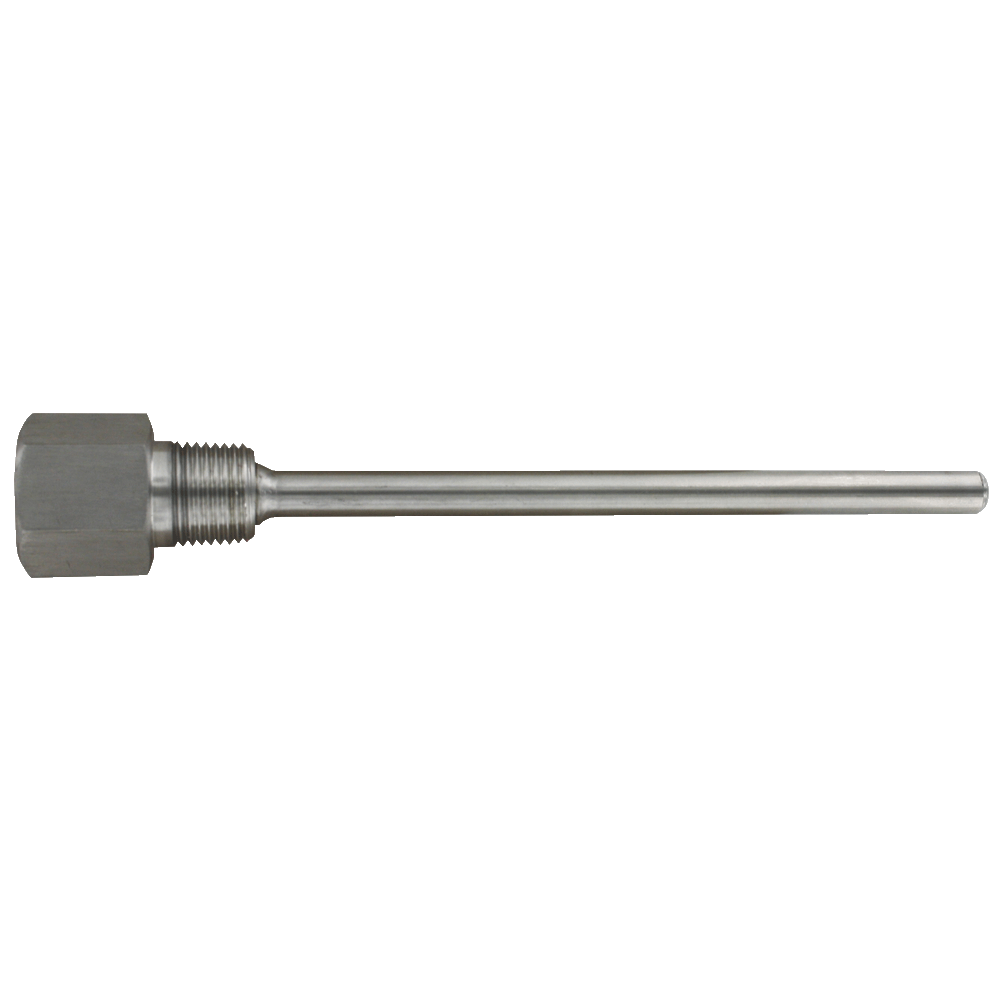

The Series TE-I Immersion Style Temperature Sensors accurately measure water temperature inside chilled and hot water loops in HVAC systems. Thermowells are required to protect the electrical connection from the process water and to allow replacement of the sensors without draining the system.

For models with resistive thermistors or RTD outputs, please see Resistance vs. Temperature Table.

Place your order for the immersion temperature sensors by using our Product Configurator, select one of the IBN, IBG, IBW, ITN, ITG or ITW housing options. Duct housings are also available on this configurator.

Product Applications

• Chiller or boiler loops
• Building automation

Features

• 1/4 turn housing cover with chain to prevent dropping
• Multiple conduit knockouts for easy installation positioning
• Integral 1/2" NPSM connection for direct mounting to a thermowell
• General purpose or weatherproof enclosure options
• Terminal connection eliminates need for wire nuts

Specifications

• Immersion probe
• Accuracy : Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor DIN Class A: ±0.15°C @ 0°C (±0.28°F @ 32°F).
• Temperature Limits : Operating: -40 to 302°F (-40 to 150°C).
• Probe Length : 2.5˝ to 18˝
• Housing Rating : NEMA 4X (IP66) (ITW only).
