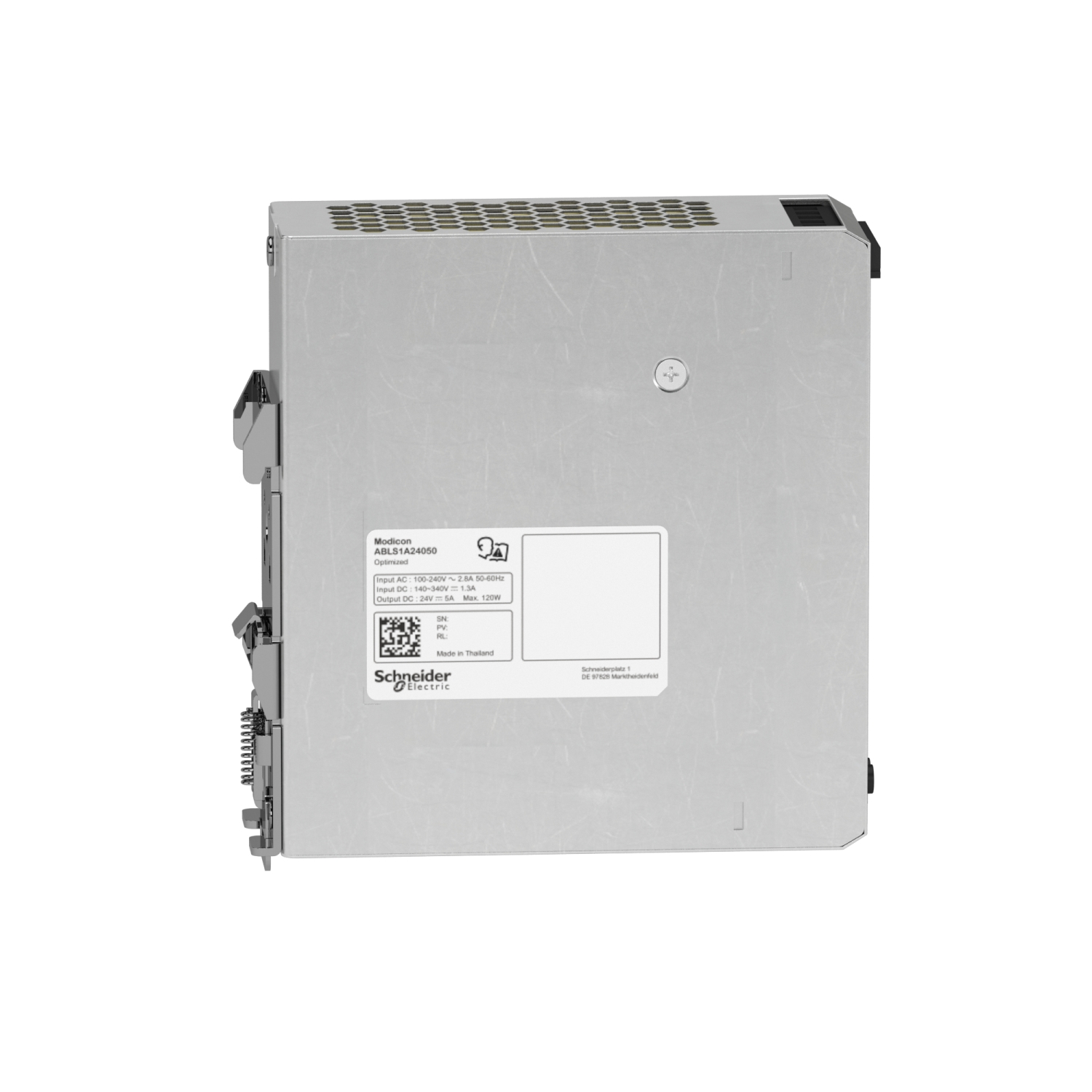

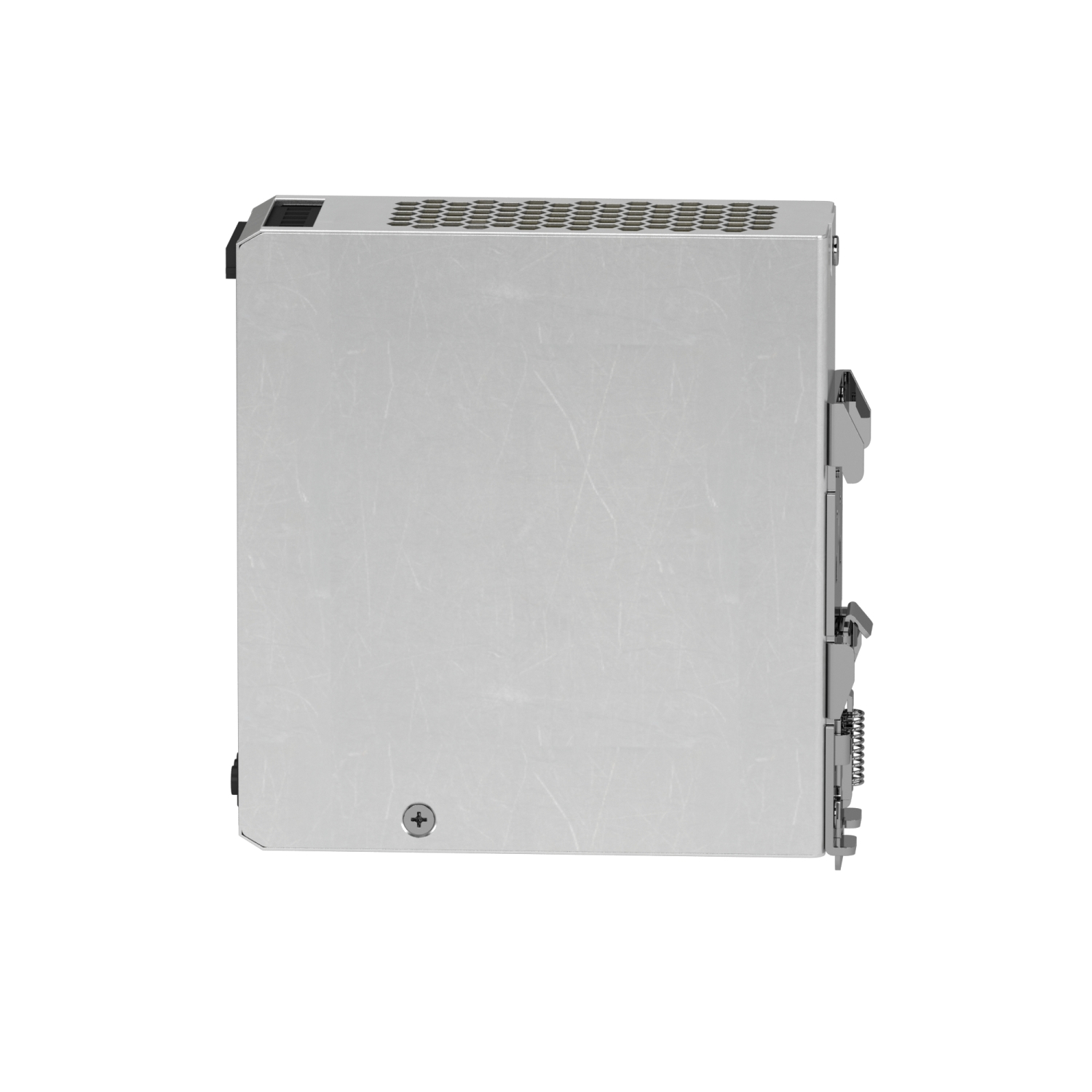

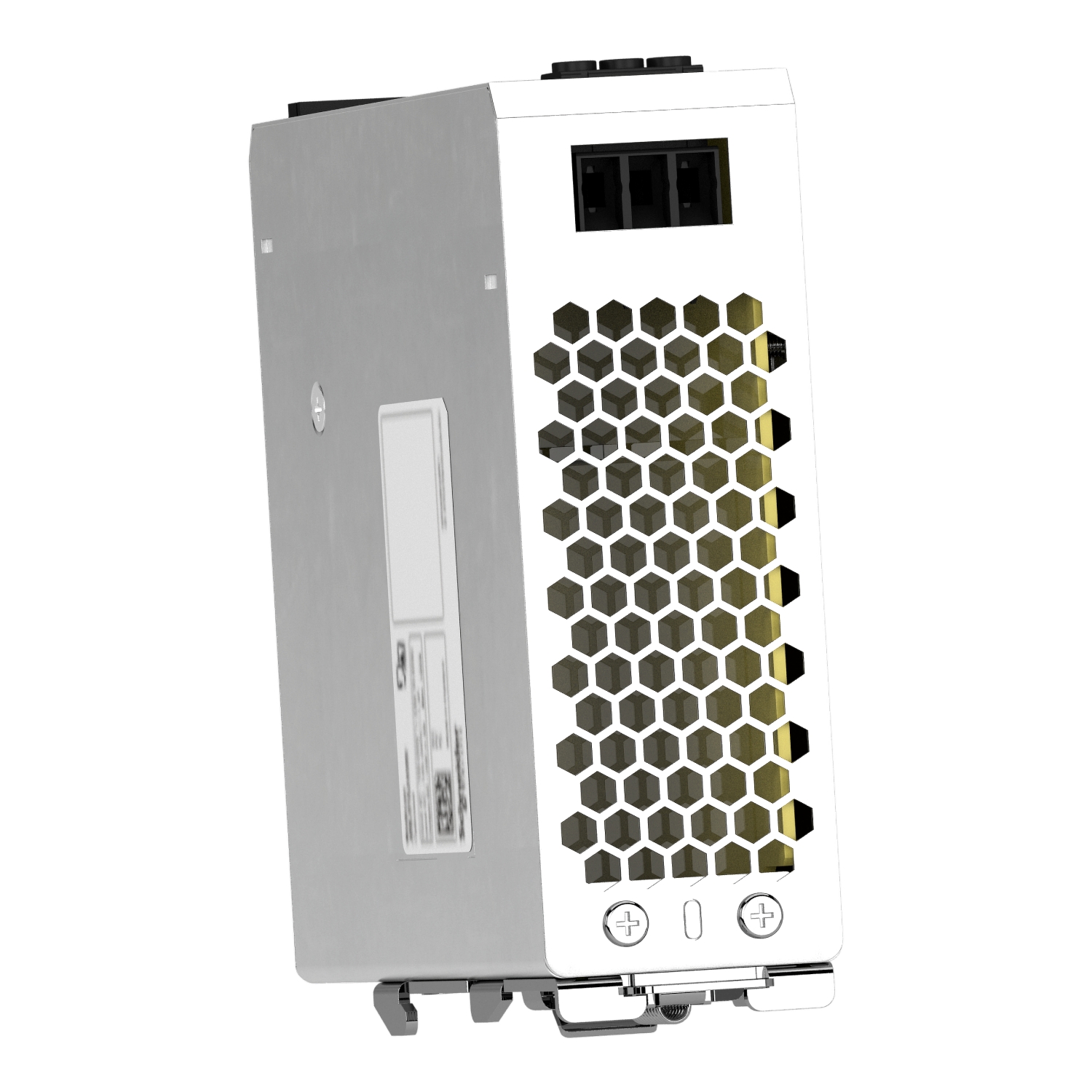

Type: Regulated switched-mode power supply.

Input Voltage:

• 100-240 V AC (single-phase)

• 140-340 V DC

Output Voltage: 24 V DC (adjustable range is 22 to 28 V).

Output Current: 5 A.

Output Power: 120 W.

Efficiency: High efficiency, up to 88% at 230 V AC.

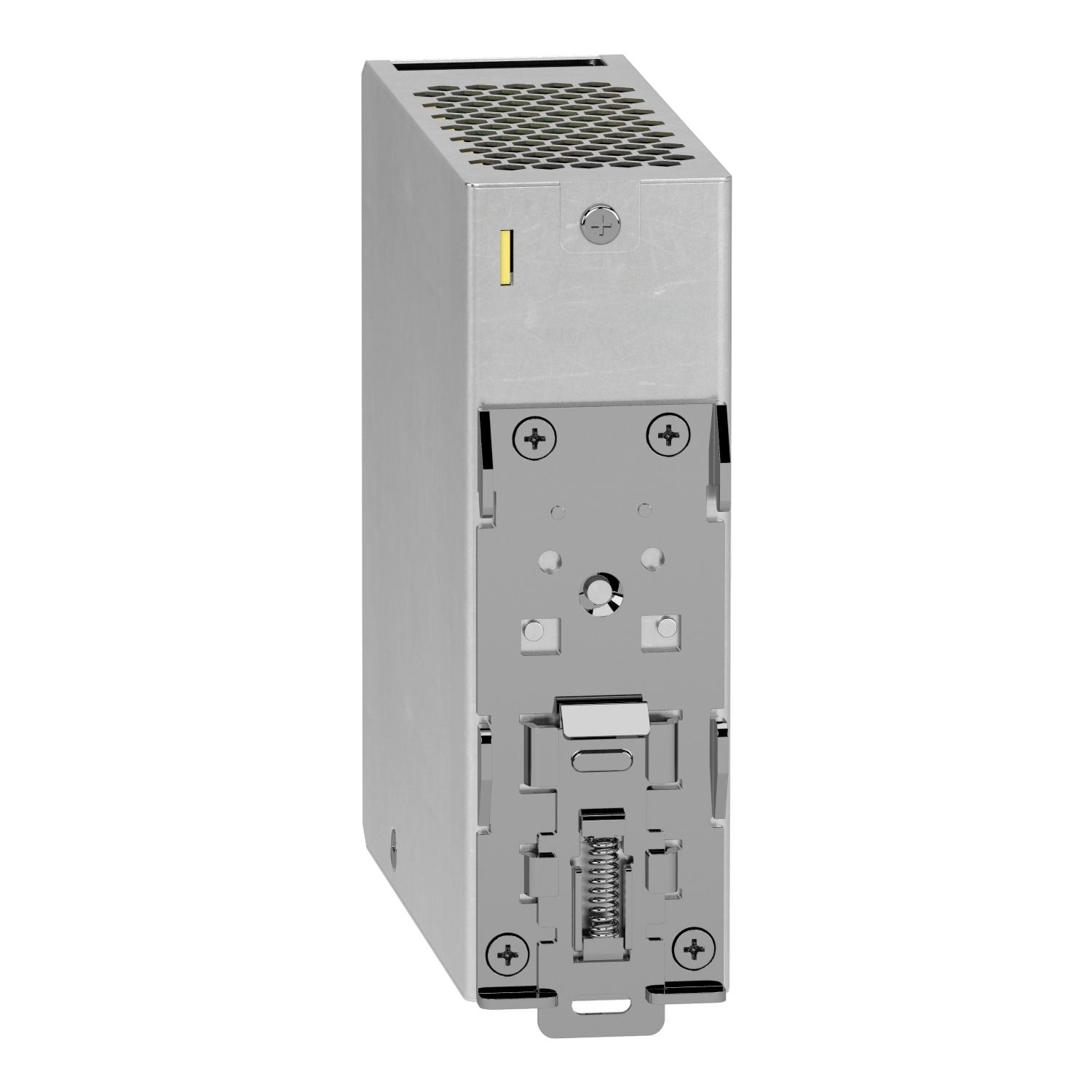

Mounting: Designed for DIN rail mounting (35 mm symmetrical DIN rail).

Protection:

• Overload and Short-circuit: Automatic reset.

• Over-temperature: Manual reset.

• Overvoltage: Manual reset.

Indicators: A green LED on the front face indicates the presence of the DC output voltage.

Safety and Standards: Conforms to various international standards including CE, UL, and others. The enclosure has an IP20 protection rating.
