Type: Regulated switched-mode power supply (SMPS).

Input Voltage: 100-240 V AC (single-phase) or 140-340 V DC.

Output Voltage: 24 V DC (adjustable range is 21.6 to 27.6 V).

Output Current: 3.2 A.

Output Power: 75 W.

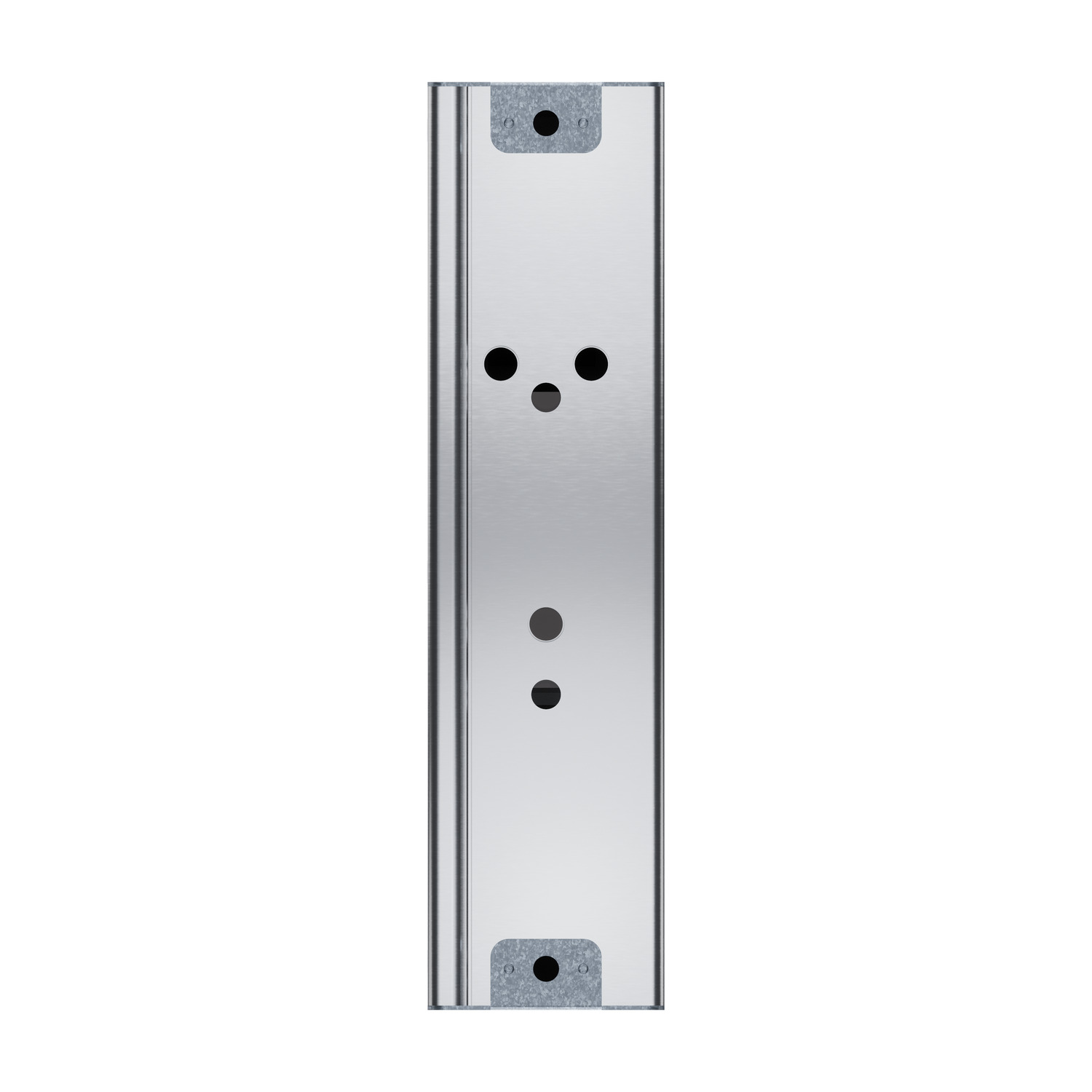

Mounting: DIN rail mounting.

Protection:

• Overload: Protects against overload by limiting the current to 1.1-1.3 times the rated current (In​).

• Overvoltage: Trips if the output voltage exceeds 29-33 V.

• Short-circuit: Features automatic reset.

• Thermal: Features automatic reset.

Connections: Screw terminals for input, output, and ground.

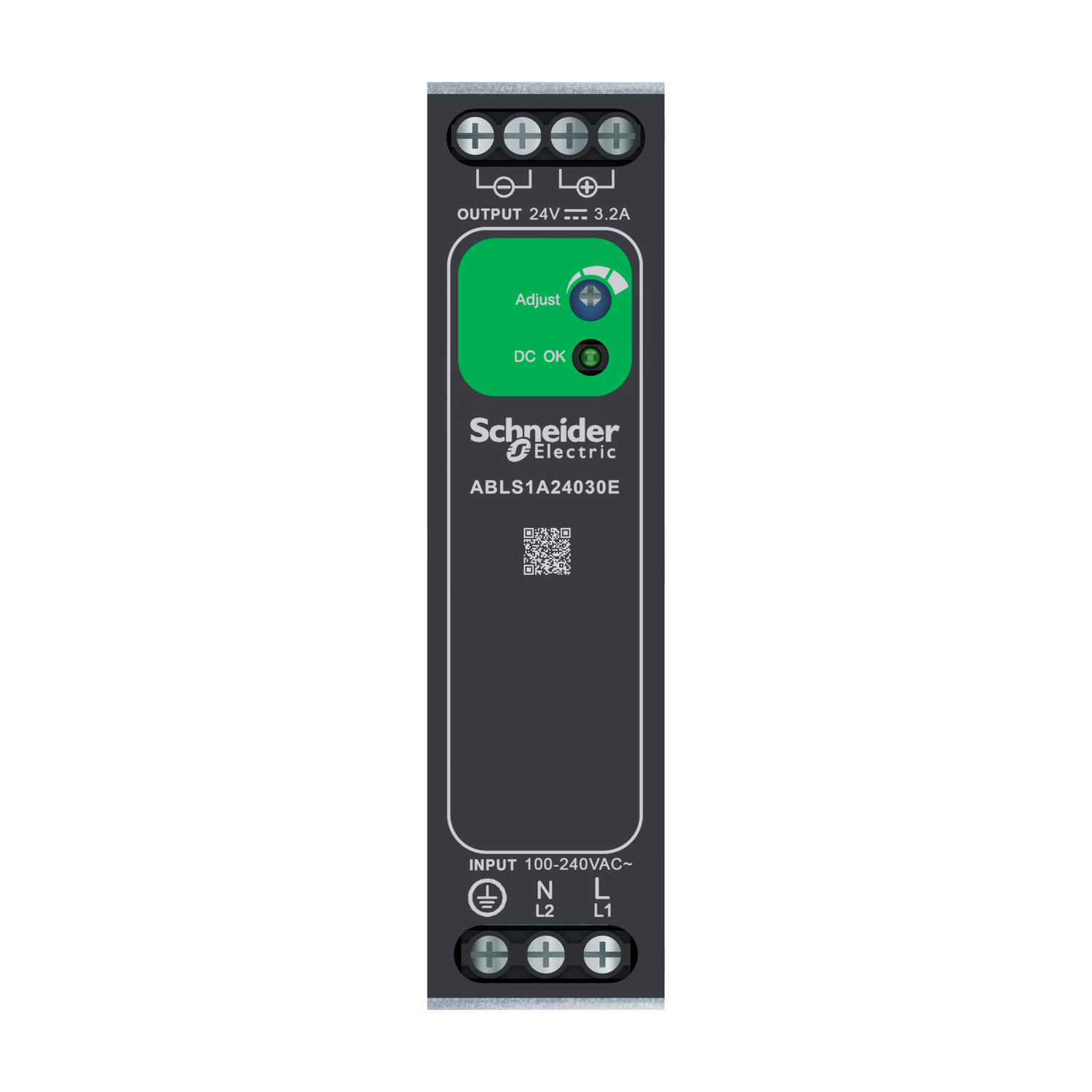

Indicator: A green LED on the front face indicates the presence of the DC output voltage.

Efficiency: Up to 87% at 230 V AC.

Safety and Standards: Meets various standards including CE and UL. The enclosure has an IP20 protection rating.
