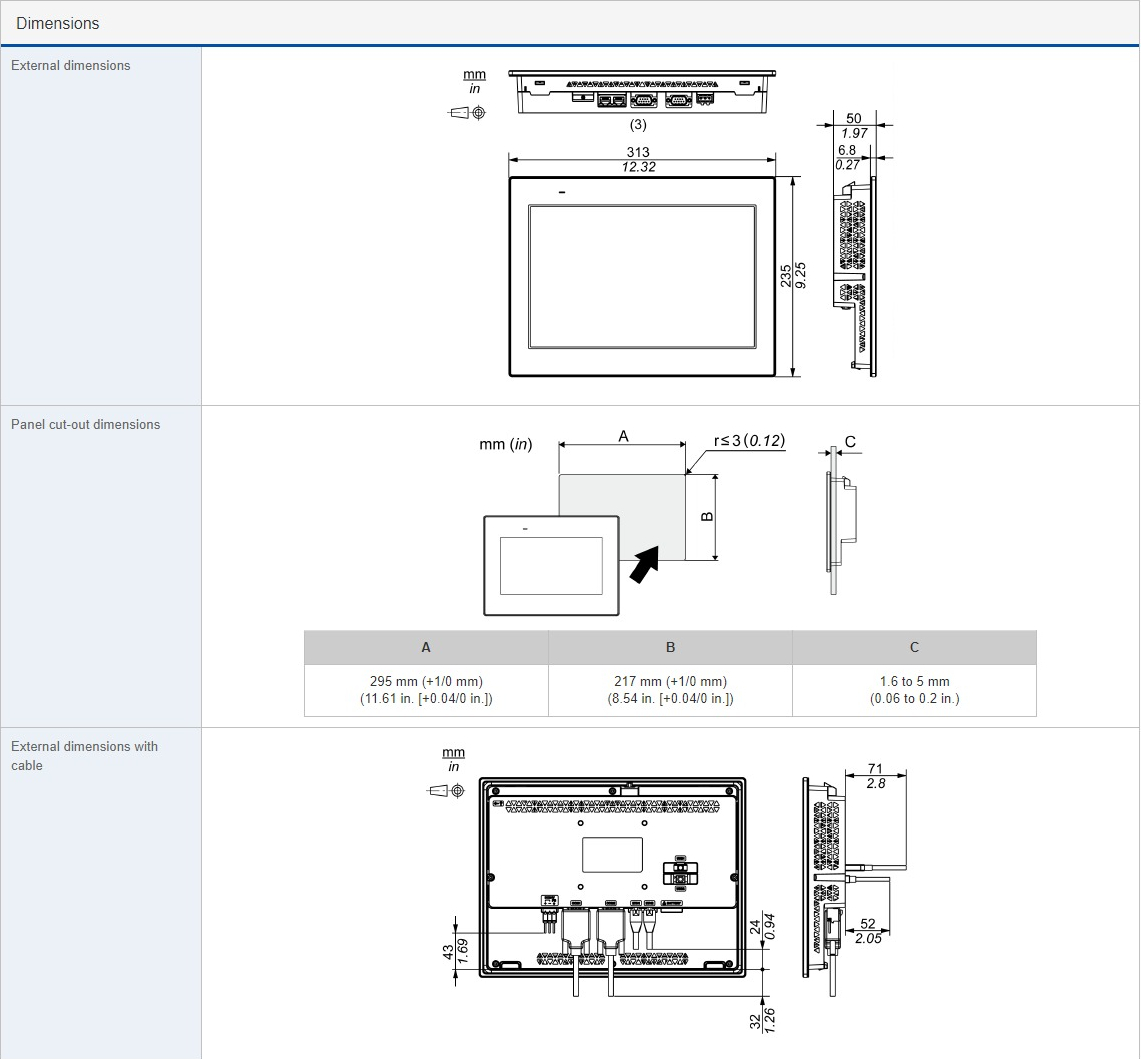

Display and Touchscreen

• Display Type: 12-inch wide TFT color LCD
• Resolution: 1280 x 800 pixels (WXGA)
• Colors: 16 million colors
• Backlight: White LED with a service life of 50,000 hours
• Touch Panel: Analog resistive film, single-touch
• Touch Panel Durability: 1,000,000 operations

Electrical and Memory

• Input Voltage: 24 VDC (19.2 - 28.8 VDC nominal)
• Power Consumption: 18 W
• Memory: Flash EPROM for screen data: 64 MB
• SRAM for screen backup: 320 KB
• SRAM for variable backup: 64 KB
• User font area: 8 MB
• Logic program area: 132 KB (equivalent to 15,000 steps)

Interfaces and Communication

• The PFXST6600WADE offers a variety of communication interfaces for connecting to other industrial devices.
• Serial Ports: Two 9-pin D-Sub connectors for COM1 and COM2.
• COM1: RS-232C
• COM2: RS-422 / RS-485

USB Ports:

• 1x USB 2.0 (Type A)
• 1x USB 2.0 (micro-B)
• Ethernet Ports: Two RJ-45 connectors.
• Supports IEEE802.3i and IEEE802.3u standards.
• Speeds: 10BASE-T / 100BASE-TX
