3157-01 Ground Bond Tester | เครื่องทดสอบกระแสรั่วลงกราวด์ | HIOKI

sku:3157-01

Availability: In stock

฿0.00

ข้อมูลสินค้า

เครื่องทดสอบกราวน์ (Ground Bond Tester)

  • ได้รับมาตรฐาน IEC60065,IEC60204-1,IEC60335-1,IEC60601-1,IEC60950,IEC61610-1 และ UL Standard

  • วัดค่าได้แม่นยำด้วยวิธี4 terminal Method

  • ย่านการวัด 0 - 1.8000 Ωที่ความแม่นยำ ±2% + 4dgt.หลังจากทำ Zero-adjust.

  • กระแสรองรับ 3.0A - 31A   ±1% setting +0.2A

  • ตั้งโปรแกรมเซ็ตค่าได้ 20 set

  • เชื่อมต่อข้อมูลผ่าน RS-232C หรือGP-IB (เลือกอย่างใดอย่างหนึ่ง)

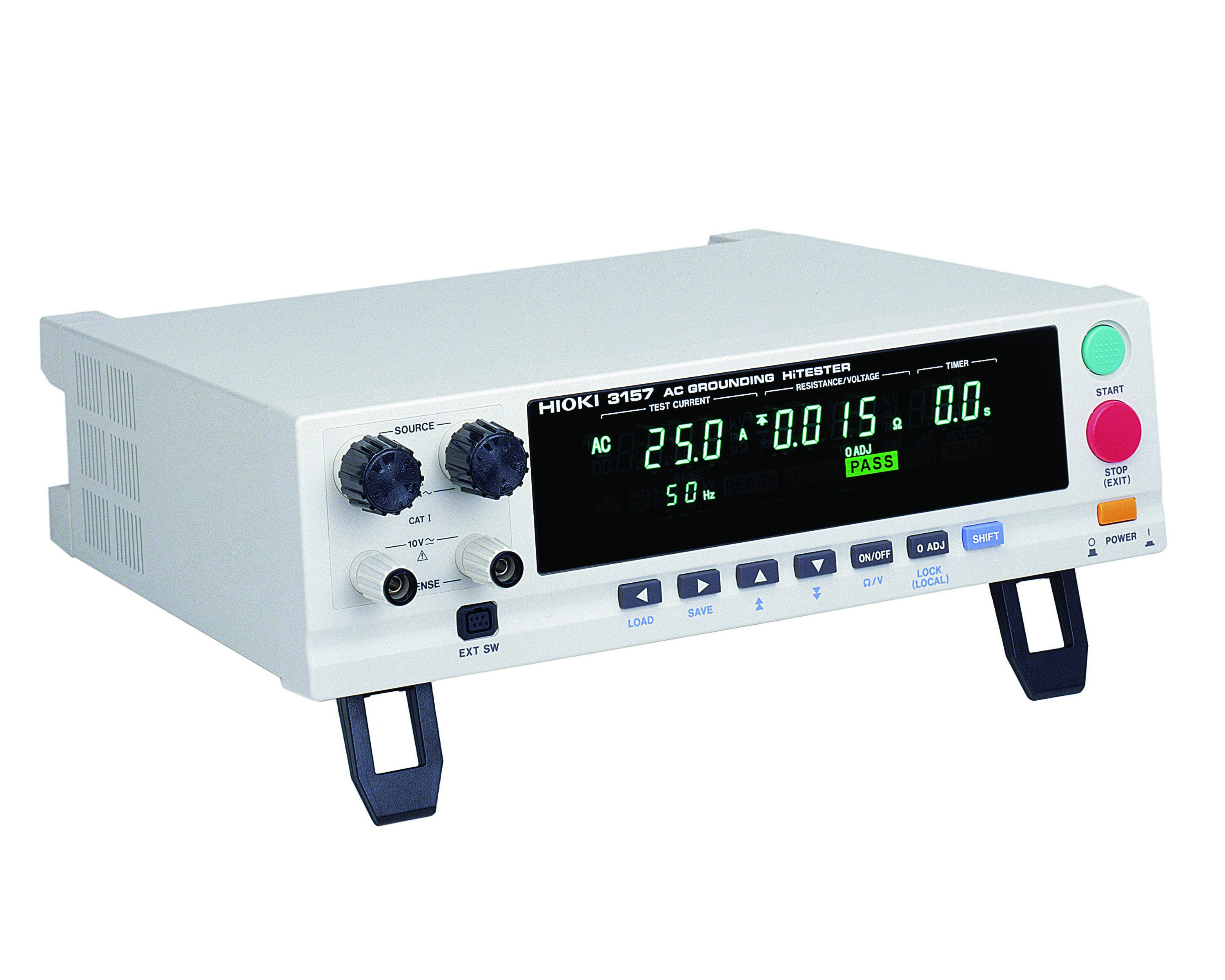

Ground Bond Tester | AC Grounding HiTester 3157

Protective Ground Tester Indispensable for Standards Certification

         AC Grounding HiTester 3157 ถูกออกแบบมาเโดยเฉพาะพื่อการวัด เช่น ตู้โลหะของอุปกรณ์ไฟฟ้าที่มีการเชื่อมต่อกับสายกราวด์ที่ระดับความต้านทานต่ำเกินไปหรือไม่ นอกจากนี้ยังสามารถใช้ในการประเมินสภาพของการติดตั้งระบบไฟฟ้าขนาดใหญ่ การวัดจะดำเนินการโดยใช้กระแสไฟฟ้าสูงตามข้อกำหนดของการวัดวัตถุและตามข้อกำหนดเมื่อมีแรงดันไฟตกตามจุดที่ตั้งไว้ โดยจะมีค่าอ้างอิงดังที่กำหนดไว้ในมาตรฐานความปลอดภัยต่าง ๆ

GPIB    RS232C   CE
Option               Option



Key Features

  • Easily perform protective continuity testing in compliance with international safety standards and laws
  • 1) Protective continuity resistance measurement for medical devices and general electrical devices
  • 2) Ground connectivity testing when installing electrical machine tools and distribution panels
  • 3) Testing of protective grounding and isopotential grounding work for medical equipment
  • 4) Evaluation of contact status using large currents
  • Feedback control system that is capable of applying a stable current even with a fluctuating load
  • Soft-start function that checks the connection to the device under test before applying the current

Specifications

Basic functions:

AC 4-terminal method resistance measurement

Display:

Fluorescent tube (digital display)

Current setting range:

3.0 A to 31.0 A AC (0.1 A resolution), into 0.1Ω load

Max. output power:

130 VA (at output terminals)

Open-terminal voltage:

Max. 6 V AC

Generator frequency:

50 Hz or 60 Hz sine wave (selectable)

Resistance measurement:

0 to 1.800 Ω (0.001 Ω resolution), Accuracy: ±2% rdg. ±4 dgt. after zero-adjust

Voltage measurement

0 to 6.00 V AC (single range 0.01 V resolution), Accuracy: (1 % rdg. +5 dgt.)

Monitor section

0 to 35.0 A AC/ 0 to 6 V AC, Refresh rate: 2 times/s

Timer display

Counts down time after start until preset time, Shows elapsed time after start

Timer setting

0.5 s to 999 s

Comparator

PASS/FAIL evaluation using preset upper/lower limit, buzzer sound, signal output

Memory function

Max. 20 settings (with save/load)

Interfaces

EXT I/O, EXT SW, GP-IB or RS-232C (option)

Power supply

100 to 120 V/200 to 240 V AC (switching, 50/60 Hz)

Dimensions and mass:

320 mm (12.60 in)W × 90 mm (3.54 in)H × 263 mm (10.35 in)D, 7 kg (246.9 oz)

Accessories:

Power cord ×1, Instruction Manual ×1, Spare fuse (inlet) ×1, Shorting bar ×2
